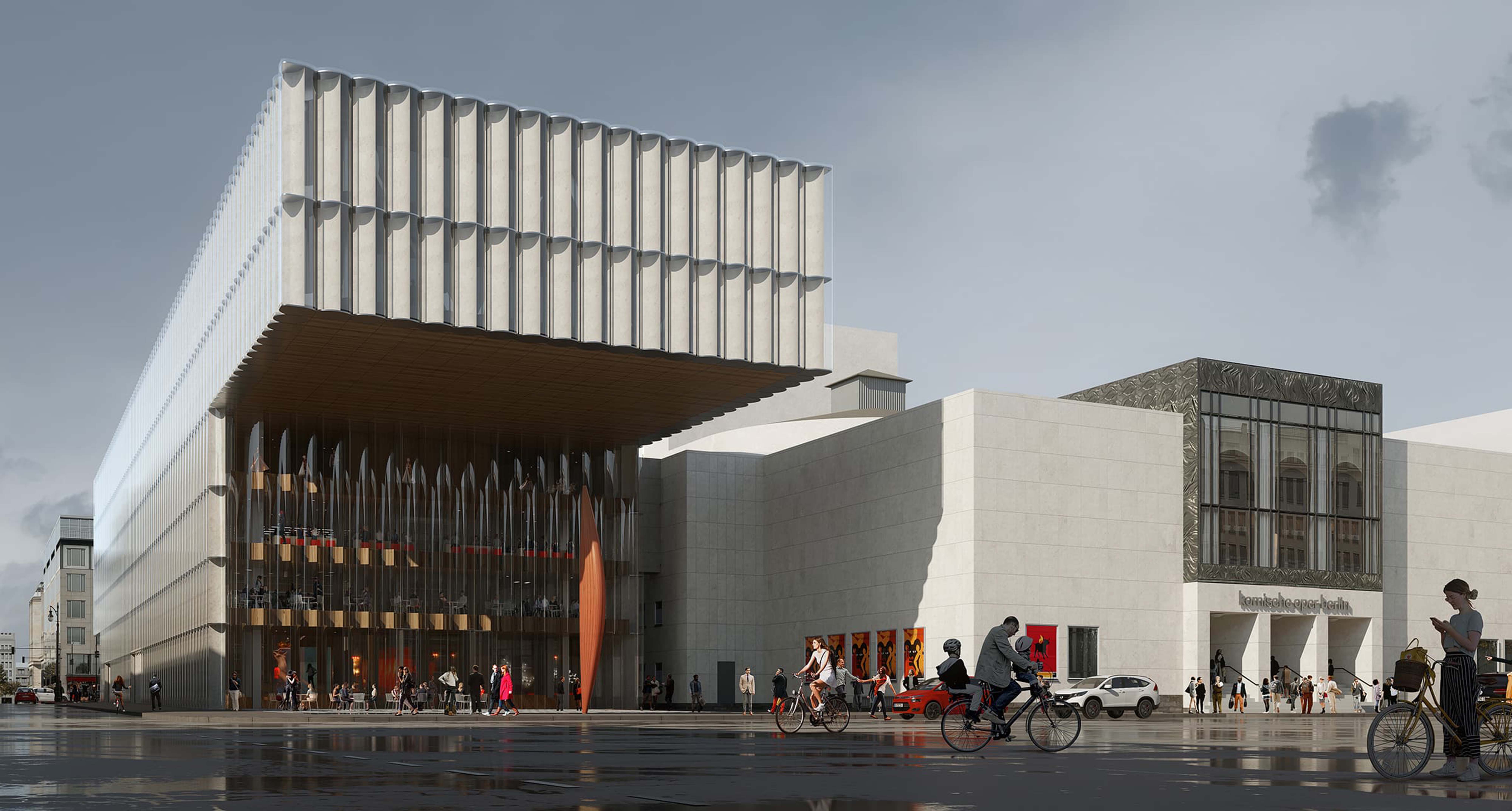

Visualization of Komische Oper Berlin Expansion, designed by REX.
REX_KOB_1_South Render_Credit Luxigon

KOMISCHE OPER BERLIN EXPANSION
Berlin, Germany

CLIENT Federal State of Berlin, Senate Department for Urban Development and Housing
PROGRAM Renovation and expansion of a landmarked opera house, including two rehearsal stages, orchestra rehearsal, suite of smaller practice rooms, box office, shop, café, restaurant, and administrative offices
AREA 38,000 m2 (409,000 sf)
COST Confidential
STATUS Limited competition 2020; finalist 2020
ARCHITECT REX
PERSONNEL Tim Carey, Wanjiao Chen, Adam Chizmar (PL), Maur Dessauvage, Kelvin Ho, Sebastian Hofmeister (PL), Britt Johnson, Isabelle Moutaud, Joshua Ramus, Elina Spruza Chizmar, Tammy Teng, Vaidotas Vaiciulis (PL), Teng Xing
LOCAL ARCHITECT Brenne Architekten
CONSULTANTS Front, Jan Knippers, KLW, Theater Engineering, Theatre Projects, Threshold, Transsolar, Treibhaus

A visualization of the rehearsal stage interior.
REX_KOB_2_Rehearsal Render_Credit Luxigon

One of two rehearsal stages, louvers open

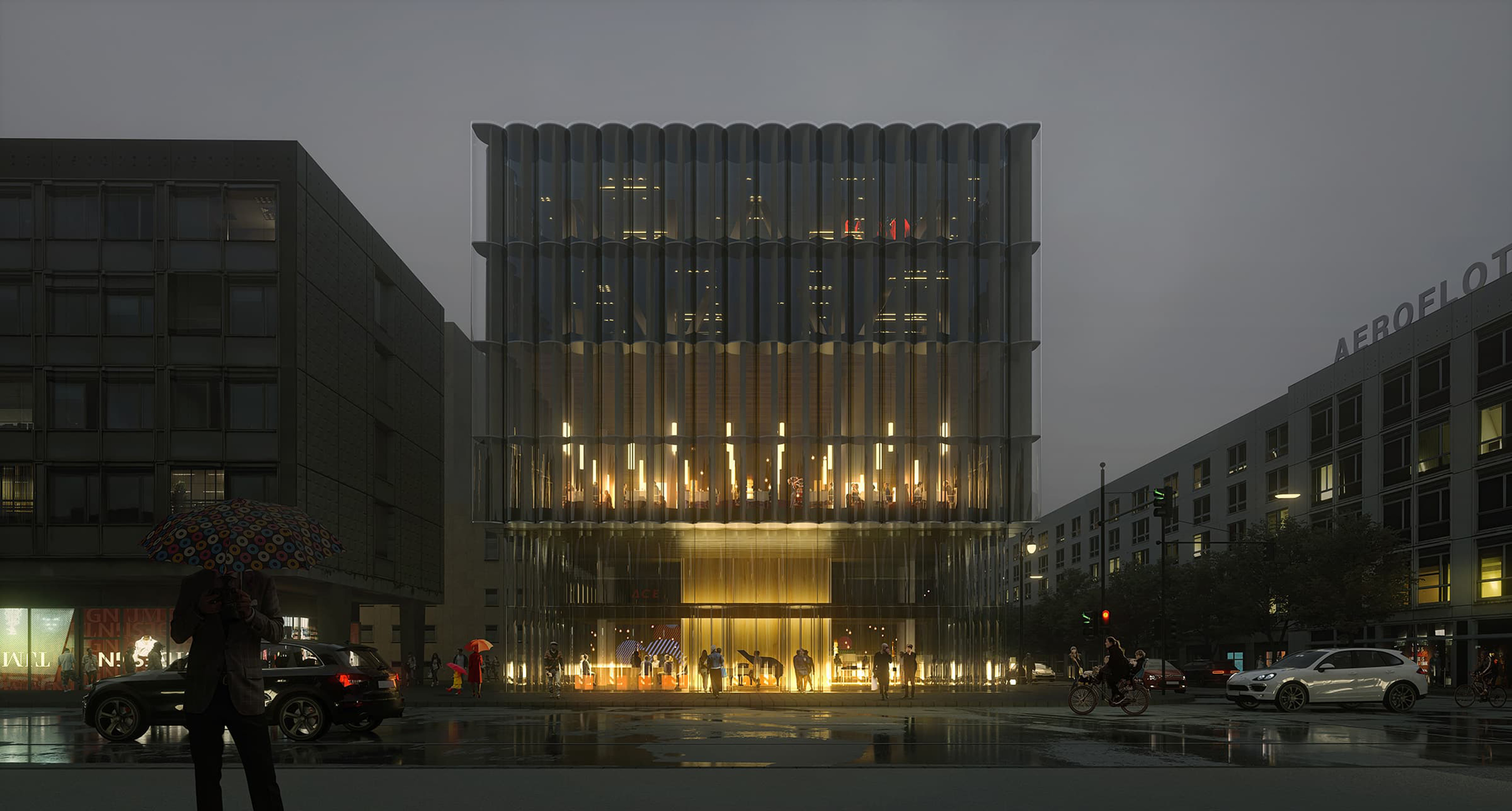

A visualization of the Komische Oper Expansion from Unter den Linden at dusk.
REX_KOB_3_North Render_Credit Luxigon

Box office and restaurant on Unter den Linden

This proposed design for the Komische Oper Expansion aspires to create a respectful and individual partner that highlights the Komische Oper building and defines a new urban node befitting the significance of the institution. Its contextual massing, outward-facing public functions, and generous urban plaza integrate the building in the neighborhood’s fabric. Its understated yet dynamic façade allows the Expansion’s creative energy to spill out into the public realm or be fully cloistered when desired.

A diagram showing the compact Nucleus containing an efficient rehearsal node and dynamic performance venue
REX_KOB_4_Diagram

A compact Nucleus: efficient rehearsal node and dynamic performance venue

The Komische Oper Expansion condenses its essential functions into a dynamic ‘Nucleus:’ the two rehearsal stages, the orchestra rehearsal, and the suite of practice rooms straddle a central ‘Circulation Hub’ containing passenger and scene elevators, stairs, and lounges for the fluid movement of performers, scenery, instruments, and equipment. This compact organization renders the Nucleus a highly efficient rehearsal node and—due to the variable raked floor machinery in the rehearsal stages—a lively public performance venue, able to also host private functions for increased economic productivity.

A diagram showing the direct connectivity of the Expansion with the Komische Oper.
REX_KOB_5_Diagram

Direct connectivity with the Komische Oper

The Nucleus’ Circulation Hub connects performers and technicians—as well as rehearsal and other support spaces—directly to the existing Komische Oper’s main stage and orchestra pit. The larger rehearsal stage is adjacent to the side stage entrance, allowing set configurations to be tested and transported without disrupting other functions. The new orchestra rehearsal and instrument storage are aligned with the orchestra pit, ensuring timely turn-over from preshow uses.

A diagram demonstrating the preserved site requirements and Komische Oper primacy.
REX_KOB_6_Diagram

Preserved site requirements and Komische Oper primacy

In addition to maximizing connectivity with the existing Komische Oper, the Nucleus’ compactness preserves the required loading and egress alleys while maintaining the critical 20-meter-wide footprint of the rehearsal stages. Performer and staff access to the Komische Oper Expansion is off Glinkastraße to retain primacy of the Komische Oper’s distinct entrance on Behrenstraße, both as the public access point for audiences and as a cultural landmark in Mitte. The existing performer entrance to Komische Oper in the rear courtyard is improved with a new security vestibule adjacent to—and with security oversight of—the Expansions’ scene dock.

A diagram illustrating urban activators inside and out, and deferential massing.
REX_KOB_7_Diagram

Urban activators inside and out, and deferential massing

The Nucleus’ compactness also enables urban activators to cap its ends. On Behrenstraße, the three stacked floors of the café provide views both out to the city and into the larger rehearsal stage. A new public plaza—the ‘Urban Room’—in front of the café supports outdoor dining and can serve as an exterior venue for performances, exhibitions, markets, fashion shows, or cinema. On Unter den Linden, the new box office, shop, and restaurant increase the Komische Oper’s visibility on this popular thoroughfare. Like the café, the restaurant—with its own, dedicated entrance for independent operation—allows guests to watch the rehearsal activities in the smaller rehearsal stage. As these public uses will draw in foot traffic, they also create new patron engagement with Komische Oper’s programming and support non-performance revenue streams.

When the rehearsal stages serve as public performance spaces, patrons access these venues from the entrances of the café and restaurant such that clear demarcation between public and private functions is maintained; portions of the café and restaurant become the venues’ lobby and bar spaces.

The Expansion lines up strategically with the back of Komische Oper’s entry block to preserve the important sightlines to its historic entrance, and maintains the loading alley as a passageway under the extension.

A diagram demonstrating integrated yet isolated office and mechanical functions.
REX_KOB_8_Diagram

Integrated yet isolated office and mechanical functions

The offices, instrument storage, and mechanical spaces are organized in long bars above and below the Nucleus and the new urban amenities, stretching to the site’s full 110 m. The office floors feature double-story courtyards that introduce daylight and fresh air into the work spaces. They can be used year-round thanks to deployable EFTE pillows. The office floors create a 20-meter-long cantilever on Behrenstraße that defines the Urban Room. At almost 15 m high, the cantilever frames views to the Komische Oper from the corner of Glinkastraße and Behrenstraße, enhancing further the respectful symbiosis between the two buildings. A similar 10-meter-long cantilever (creating the glass-enclosed box office below) on Unter den Linden extends the Opera Support Building’s covered public walkway.

A diagram illustrating the facade's visual, acoustic, and environmental performance.
REX_KOB_9_Diagram

Visual, acoustic, and environmental performance

The Expansion’s double-skin façade with its integrated stone louvers (matching the white Cottaer Sandstone to be reinstalled on the existing Komische Oper) is one of the building’s most notable features, visually and sustainably. The 3 m to 4.2 m tall arced louvers rotate 180 degrees to track the sun, but also give performers the options to 1) expose their work—as desired—to passers-by, 2) benefit from rehearsing in full daylight, with minimized brightness and glare, or 3) create full blackout environments. The façade’s ever-changing nature gives the building its subtle yet dynamic identity.

Each facade’s two glazing layers, the naturally-ventilated cavity between them, and their enclosed, stone sun/glare-control louvers, combine to significantly reduce the building’s mechanical and electrical loads. The double-skin/air cavity mitigates the fluctuations of external temperatures and creates a chimney stack effect which naturally ventilates the cavity. When the stone louvers are rotated perpendicular to the sun, daylight reaches deep into the building, reducing electrical loads and warming up the structure’s floors and walls for passive heating.

Detail drawings of the Komische Oper Expansion's façade.
REX_KOB_11_Facade Detail

The entire façade is suspended from the roof to protect it from variable slab movements and minimize horizontal joints along the glazed surface.

The façade’s external glazing layer is comprised of heat-curved, laminated, uncoated low-iron glass panels that are pre-bonded to extruded aluminum interlocking cassettes, affixed to top-hung steel “T” profiles providing a minimal appearance. The internal glazing layer is composed of double-glazed, heat-curved, low-iron safety glass units with a triple-silver low-E coating on surface 3 and are installed similar to the outer laminated panel with a pre-glazed aluminum assembly and steel “T” profile. The aggregate window-wall U-value is 0.70 W/m2K with a high SHGC of 0.20 for solar heat gains in winter.

The glass façade system plays a significant role in the Expansion’s acoustic performance:

  • The double façade isolates the rehearsal stages, orchestra rehearsal, practice rooms, public programs, and offices from street noise.
  • The stone louvers allow the rooms to reveal themselves and the activity within them without impacting their acoustic integrity.
  • The mass and integral damping of the 20 mm glass inner lite in the insulating glass system contribute acoustic warmth and mitigate the brightness often associated with glass when it is used as an acoustic finish.
  • The curved glass provides acoustic diffusion and—working together with the technical catwalks in the rehearsal stages—acoustic support for the performers.

Spanning each of the office’s five courtyards is an operable frame mounted with ETFE pillows. The frame is attached to tracks that allow the operable roof to slide open making the courtyards a year-round amenity for staff. When closed, the frame is designed as a fully gasketed, thermally broken system and acts as the courtyard’s thermal line. The air-inflated panels improve U-Value thermal performance and, through printed patterns, can reduce the SHGC as required.

Ground level plan of the Komische Oper Expansion.
REX_KOB_12_Ground Level

Ground Level Plan

Lower office level plan of the Komische Oper Expansion.
REX_KOB_13_Office Level

Lower Office Level Plan

Behrenstraße Elevation and Section A_A

Glinkastraße Elevation and Section B_B

At the corner of Behrenstraße and Glinkastraße, the Urban Room under the Expansion’s cantilever adds a dynamic public plaza to the Komische Oper complex and Mitte. This ever-changing public square serves both as an outdoor seating area for the café and as an event space for exhibitions, performances, markets, fashions shows, or cinema. In addition to attracting new patrons, the versatility of this space offers the Komische Oper a different source of revenue through institutional partnerships, further ensuring its social and economic sustainability.

A diagram showing the Komische Oper Expansion's structural concept.
REX_KOB_17_Structure Diagram

Three closed concrete cores at the center and at both ends of the Expansion compose its primary structural system. Besides functioning as the main vertical support elements, the rigid cores also absorb lateral movements, induced primarily by wind loading. All generic, non-isolated floor slabs are supported by a combination of the cores and concrete columns; except for the conventional concrete slab at the ground floor, they are Holorib to achieve high efficiency and weight reduction.

At the top two floors—the offices—four parallel, double-height trusses span the building’s full length, a continuous beam working with the concrete cores to form the 20-meter-long cantilever hovering above the Urban Room and the 10-meter-long cantilever over the box office.

Floating above the generic slabs and below the top floor trusses, all the rehearsal spaces employ a box-in-box concept, providing optimal sound and vibration isolation amongst the rooms and from the superstructure.

The rehearsal stages and orchestra rehearsal are constructed as independent boxes resting on isolators and attached laterally to the primary superstructure using acoustic wall ties. The larger rehearsal stage and orchestra rehearsal boxes are built using various combinations of conventional and prestressed precast concrete floor/ceiling slabs, precast walls, and steel trusses, while the small rehearsal stage box is composed of a precast concrete slab and plasterboard walls/ceilings. By contrast, the practice room boxes—composed of wood floors and plasterboard walls/ceilings—are resiliently supported on a conventional concrete slab suspended by hangers from the office trusses.

A diagram showing the Komische Oper Expansion's energy concept.
REX_KOB_18_Energy Concept Diagram

The Expansion adopts several sustainable strategies, including a naturally-ventilated façade, optimized building systems (displacement ventilation; plenum air distribution; high-efficiency, sensible, and latent heat recovery units and low-pressure air ducting; radiant thermal systems; geothermal ground source system), photovoltaic modules, green roof, and open space.

Natural ventilation at the office levels is provided via the passively tempered courtyards, which are thermally closed in winter with triple layer ETFE pillows that can be opened in the intermediate and summer seasons. This creates semi-open planted buffer spaces, ranging from a minimum annual temperature of 12°C in winter to shaded ambient temperatures in summer for full use as breakout and recreational spaces. The courtyard facades are single glazed for optimal daylight quality and natural ventilation for the offices. A textile shading system below the ETFE pillows helps control daylight, glare, and temperature.
