VAKKO FASHION CENTER & POWER MEDIA HEADQUARTERS
Istanbul, Turkey

KEY AWARDS American Institute of Architects New York, Honor Award in Architecture, 2015; Architizer, A+ Award for Best Office Building, 2013; ArchDaily’s Office Building; Aga Khan Award, Nominee, 2013; Wallpaper*, Design Award for Best Workspace, 2011; ArchDaily, Office Building of the Year, 2010
CLIENTS Vakko and Power Media
PROGRAM Headquarters for a Turkish fashion house—including 5,400 m² (58,000 sf) of offices, showrooms, conference rooms, auditorium, museum, and dining hall—as well as 3,700 m² (40,000 sf) of television studios, radio production facilities, and screening rooms of its media sister-company
AREA 9,100 m² (98,000 sf)
COST Confidential
STATUS Completed 2010
ARCHITECT REX
PERSONNEL Erez Ella, Tomas Janka, Mathias Madaus, David Menicovich, Tsuyoshi Nakamoto, Joshua Ramus, Ishtiaq Rafiuddin, Tieliu Wu
CONSULTANTS ARTE, Autoban, Buro Statik, Cedetas, Dora, Eleksis, Front, Gurmen Muhendislik, Lamglas, Norm Tecnic, Say Yapi, STEP, Superpool, Cem Mimarlik

02

03-16

When Caltech’s senior administration suddenly changed, REX’s design for the Annenberg Center for Information Science and Technology was canceled.

04-17

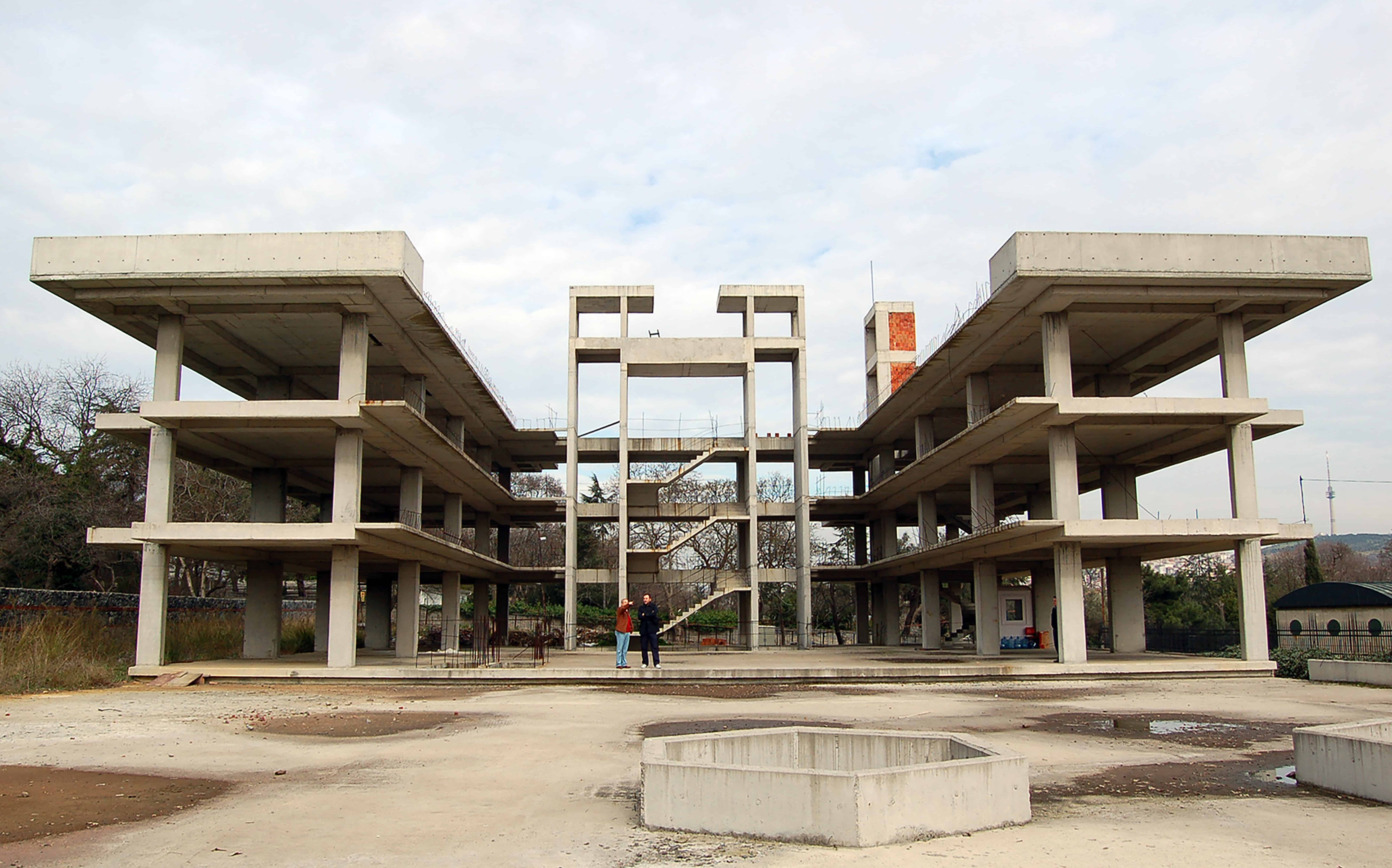

Several years later, the CEO of Vakko (Turkey’s pre-eminent fashion house) and Power Media (Turkey’s equivalent of MTV) wanted to design and construct a new headquarters by the year’s end using an unfinished, abandoned hotel. The requested timetable would normally have been absurd. However, the unfinished building fortuitously had the same plan dimension, floor-to-floor height, and servicing concept as the Annenberg Center’s ‘Ring.’

05c

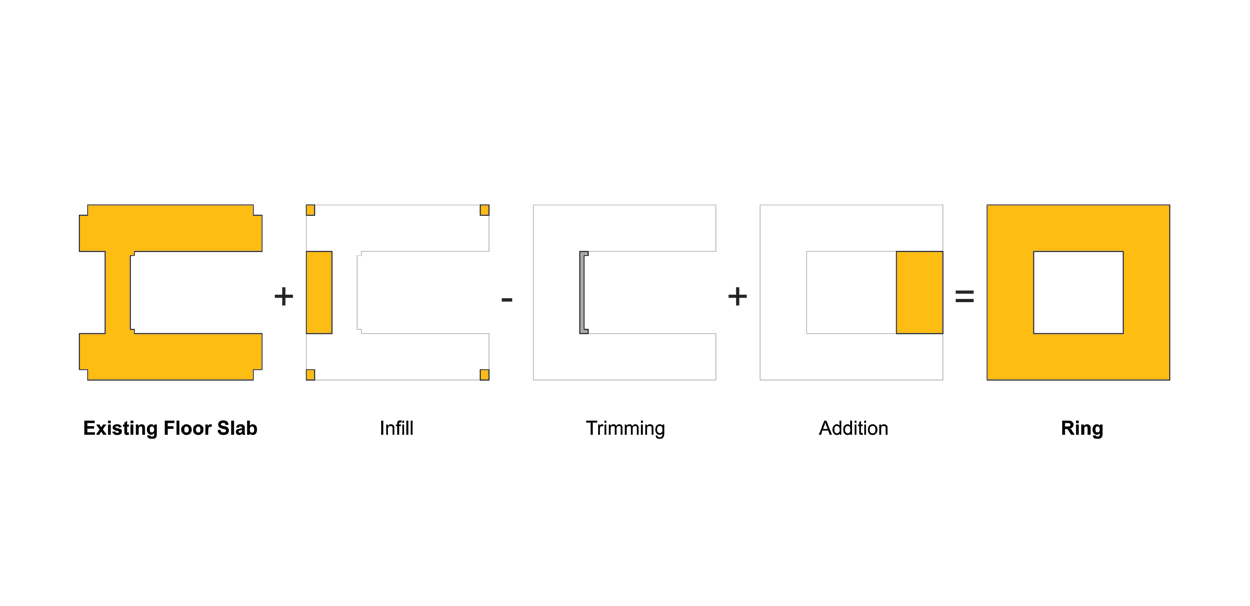

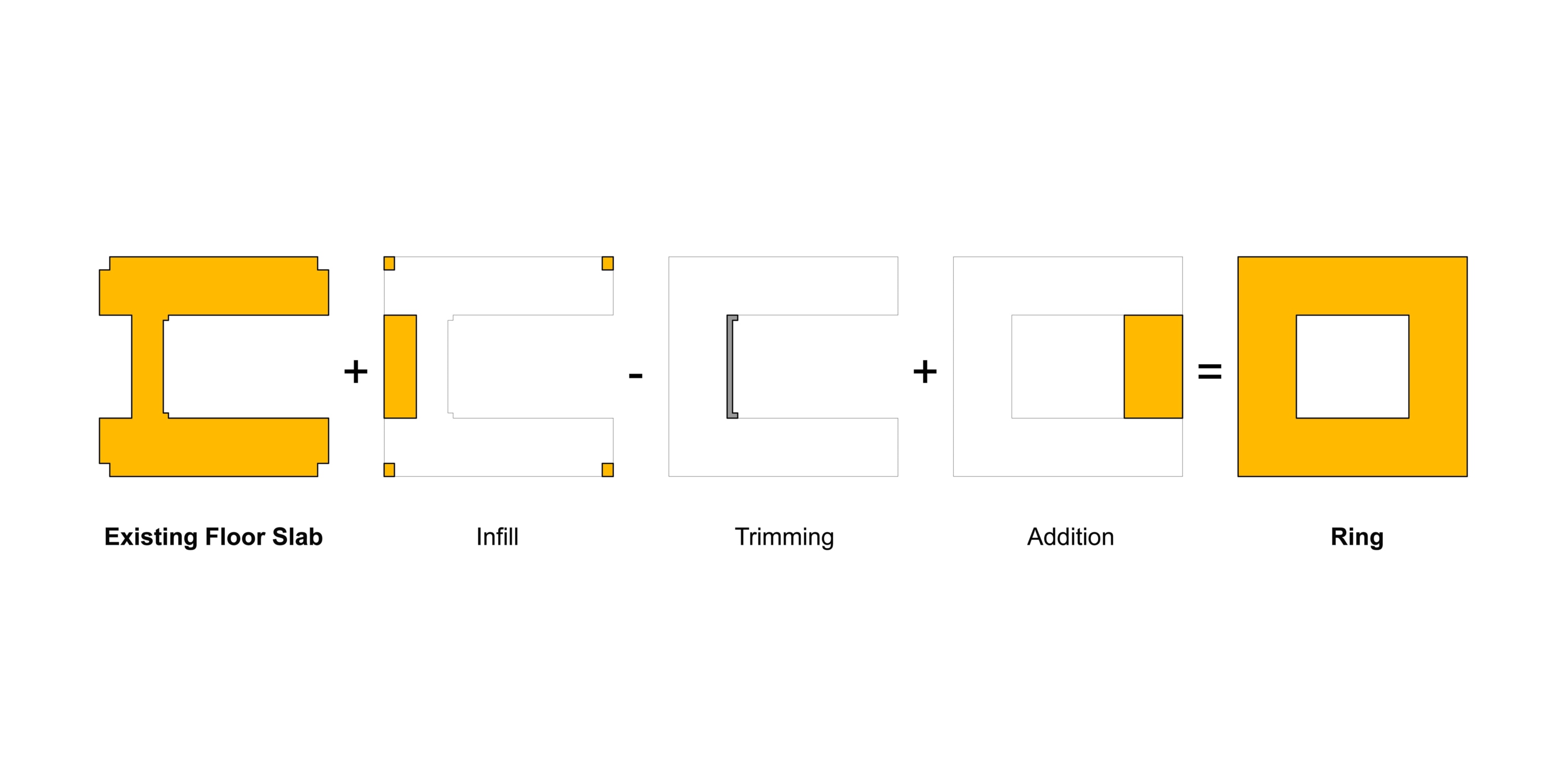

By adapting the Construction Documents produced for the Annenberg Center to the abandoned concrete hotel skeleton, construction on the perimeter office block commenced only four days after Vakko/Power first approached REX. This adaptive re-use opened an eight-week window during which the more unique portions of the program could be designed simultaneous to construction. Speed became the design’s most significant parameter.

07_A

Whereas the Annenberg Center’s Ring was a fragile, post-tensioned concrete structure which depended upon the robust, steel interior for support, Vakko/Power’s existing Ring is painfully over-designed, the byproduct of numerous, deadly earthquakes in Turkey.

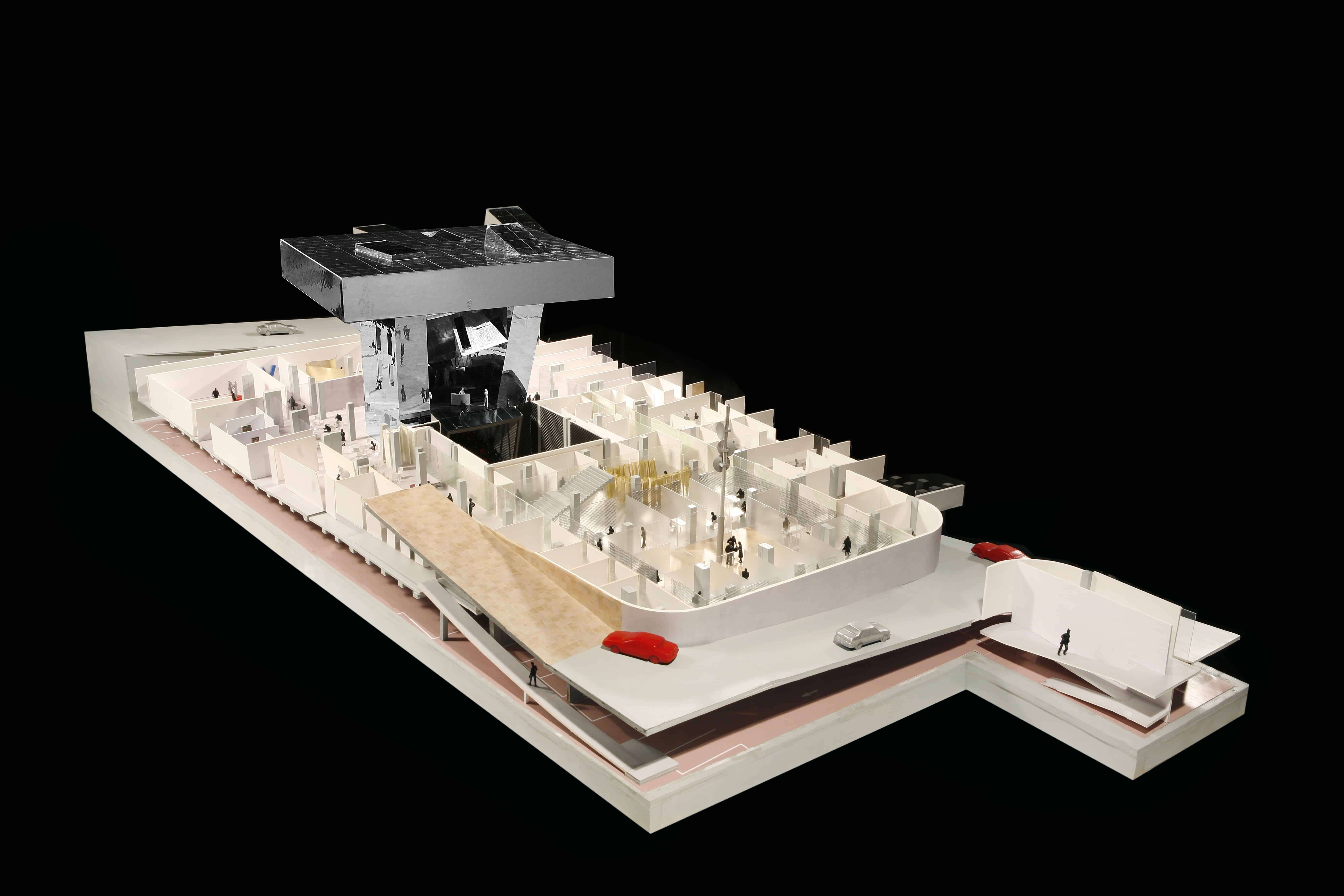

The design problem is therefore reversed: Vakko/Power’s unique interior must remain detached so as not to disrupt the structural integrity and waterproofing of the in situ skeleton. Dubbed the Showcase, this unique interior houses the auditorium, showrooms, meeting rooms, and executive offices, as well as all vertical circulation and restrooms.

08-17

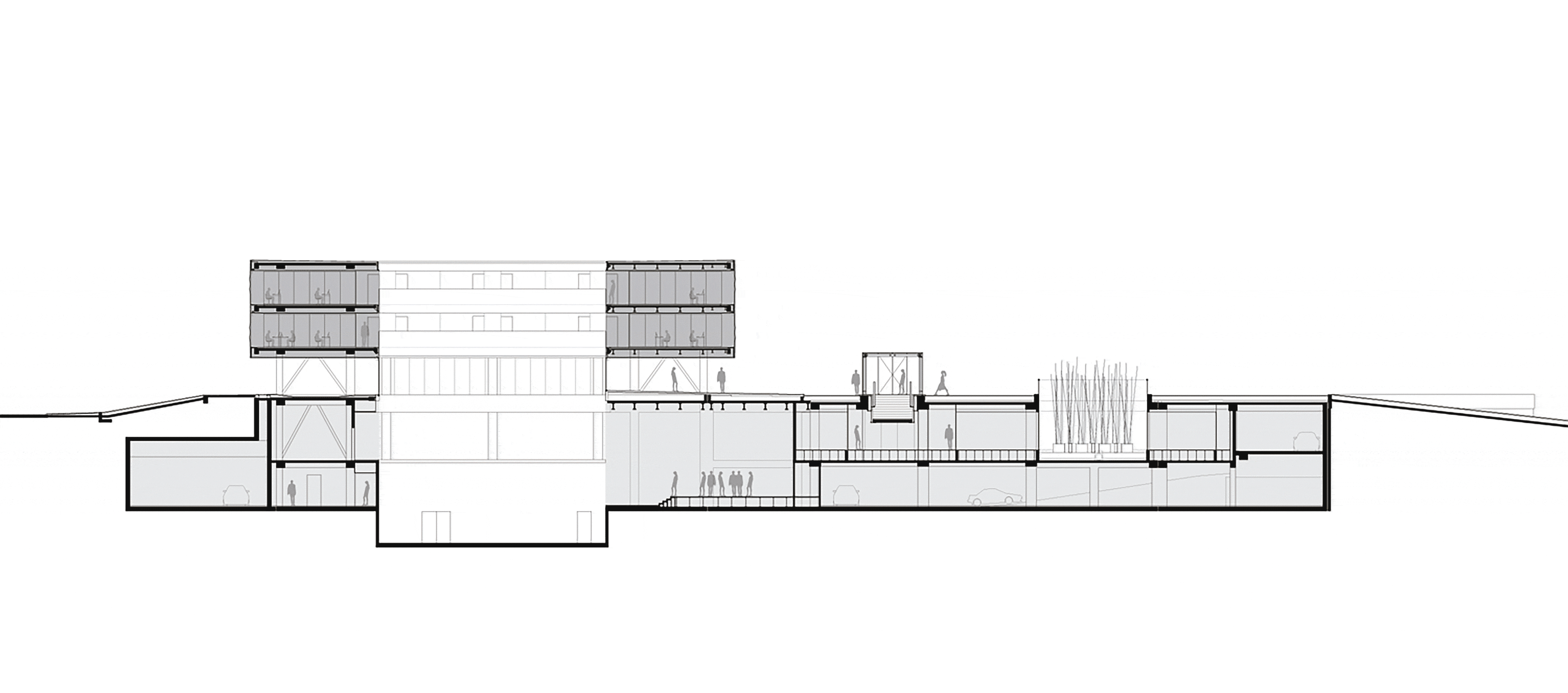

Meanwhile, the upper floor of the skeleton’s subterranean parking houses Power Media’s television and radio studios, which require acoustic damping and light control.

img-10

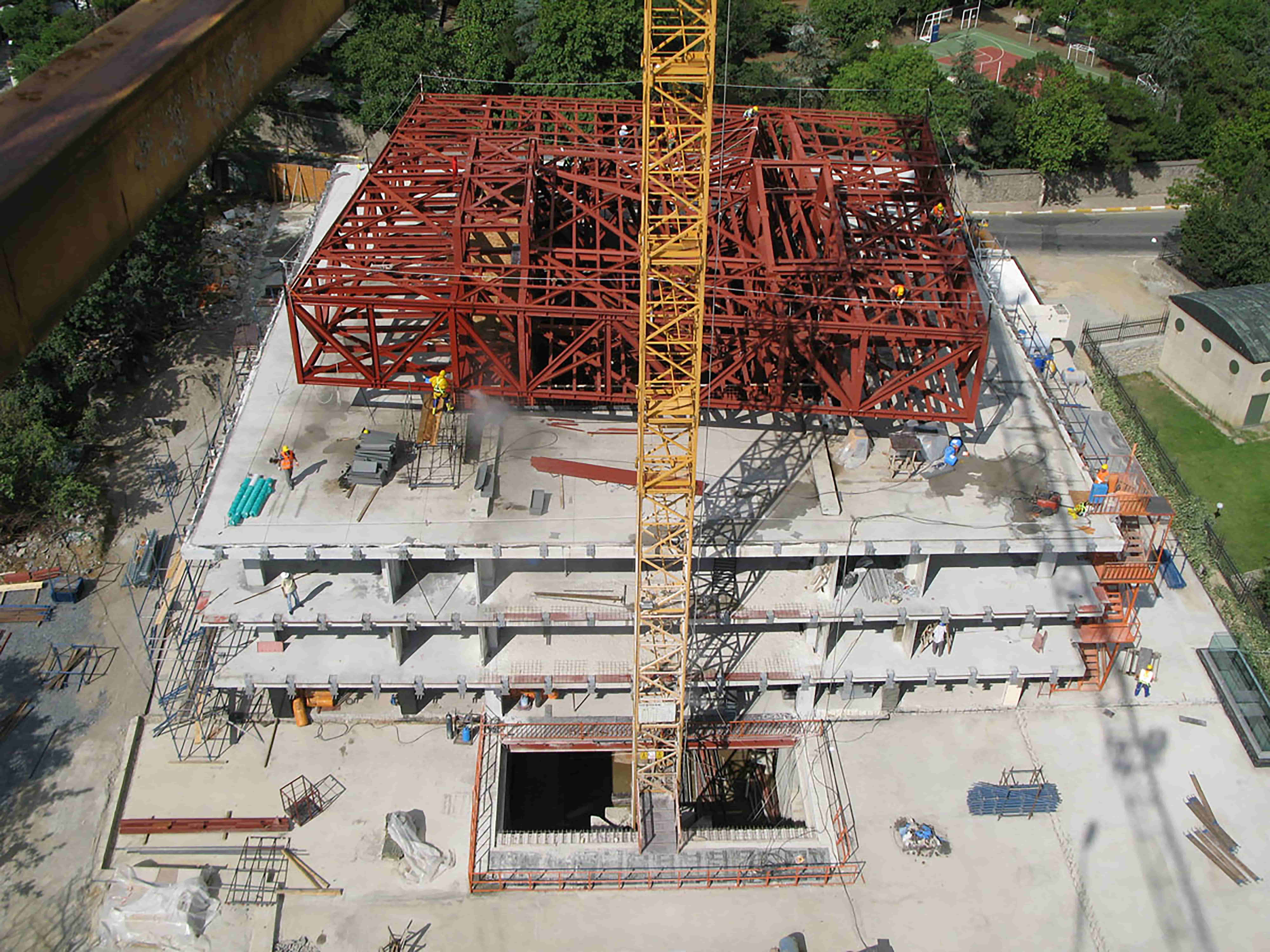

REX only had two weeks to submit the steel mill order after starting the project. Therefore, a concept for the Showcase was developed that established the general steel shapes and quantities while still allowing the design to evolve significantly.

11-12

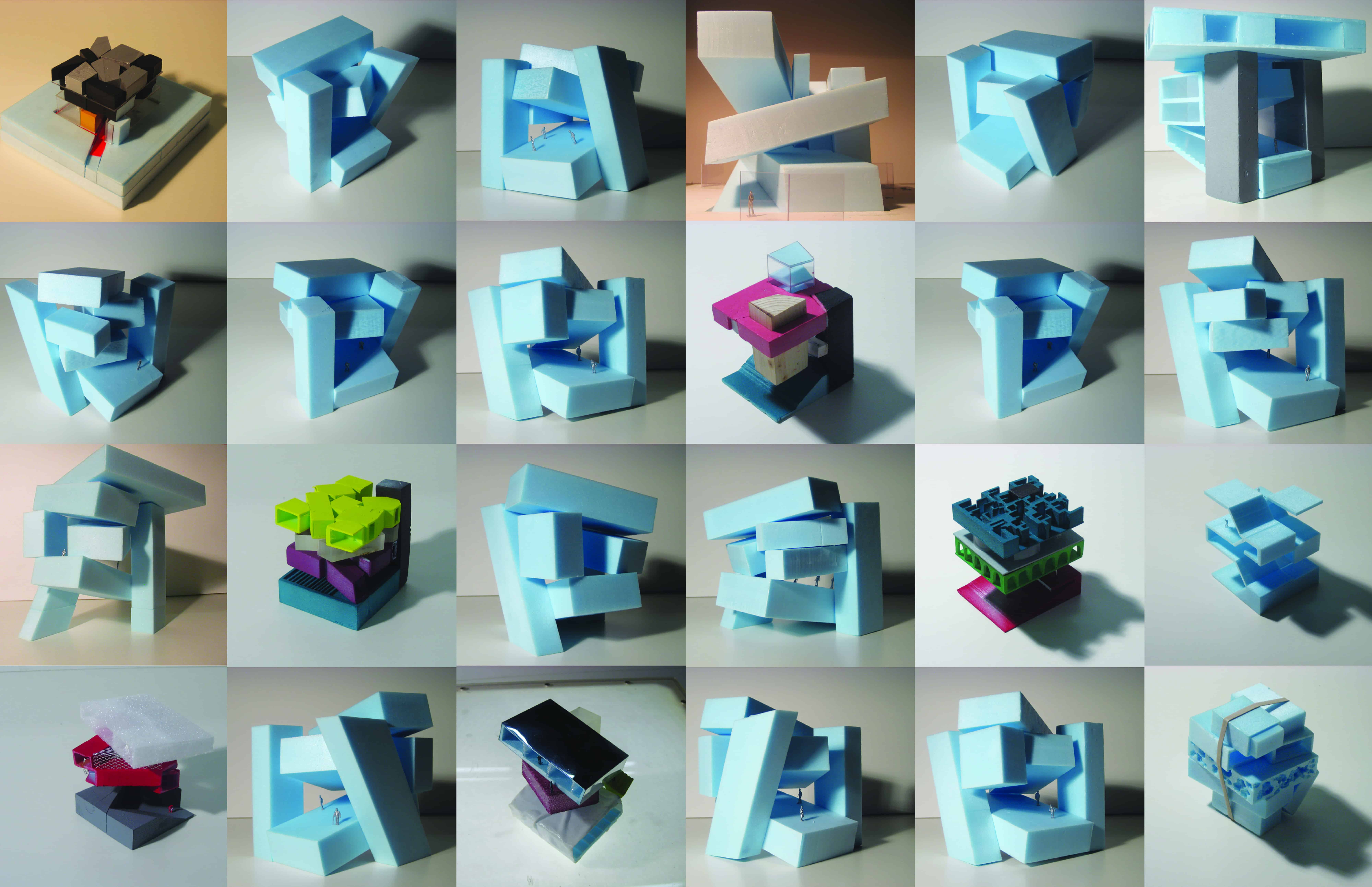

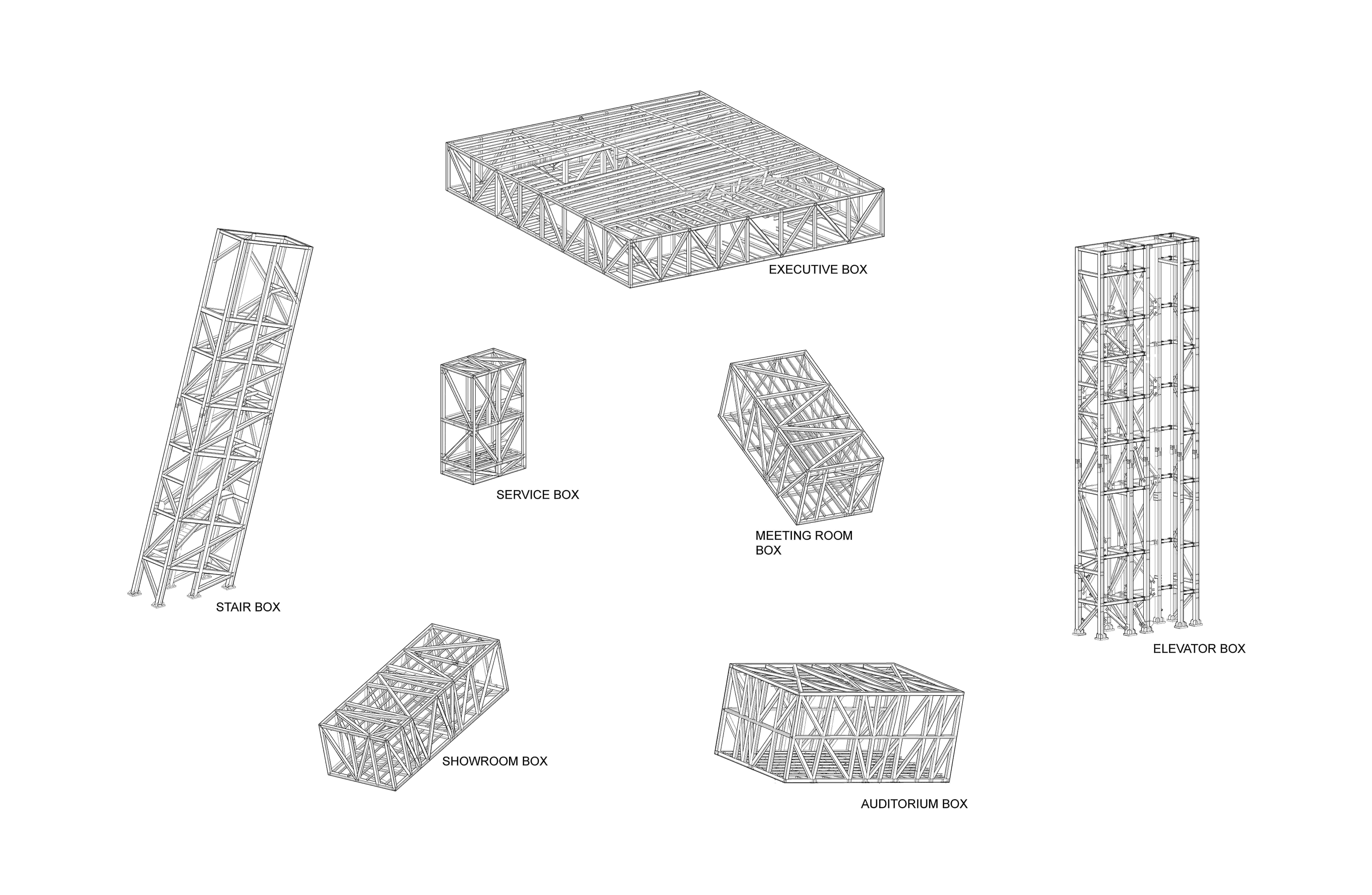

To this end, REX and its engineers devised steel boxes that could be assembled in myriad configurations while retaining the Showcase’s structural self-sufficiency.

09-14

To this end, REX and its engineers devised steel boxes that could be assembled in myriad configurations while retaining the Showcase’s structural self-sufficiency.

12-15

Ultimately, program adjacencies and code/exiting requirements dictated the final stacking of the boxes.

14-12

Ultimately, program adjacencies and code/exiting requirements dictated the final stacking of the boxes.

15-13

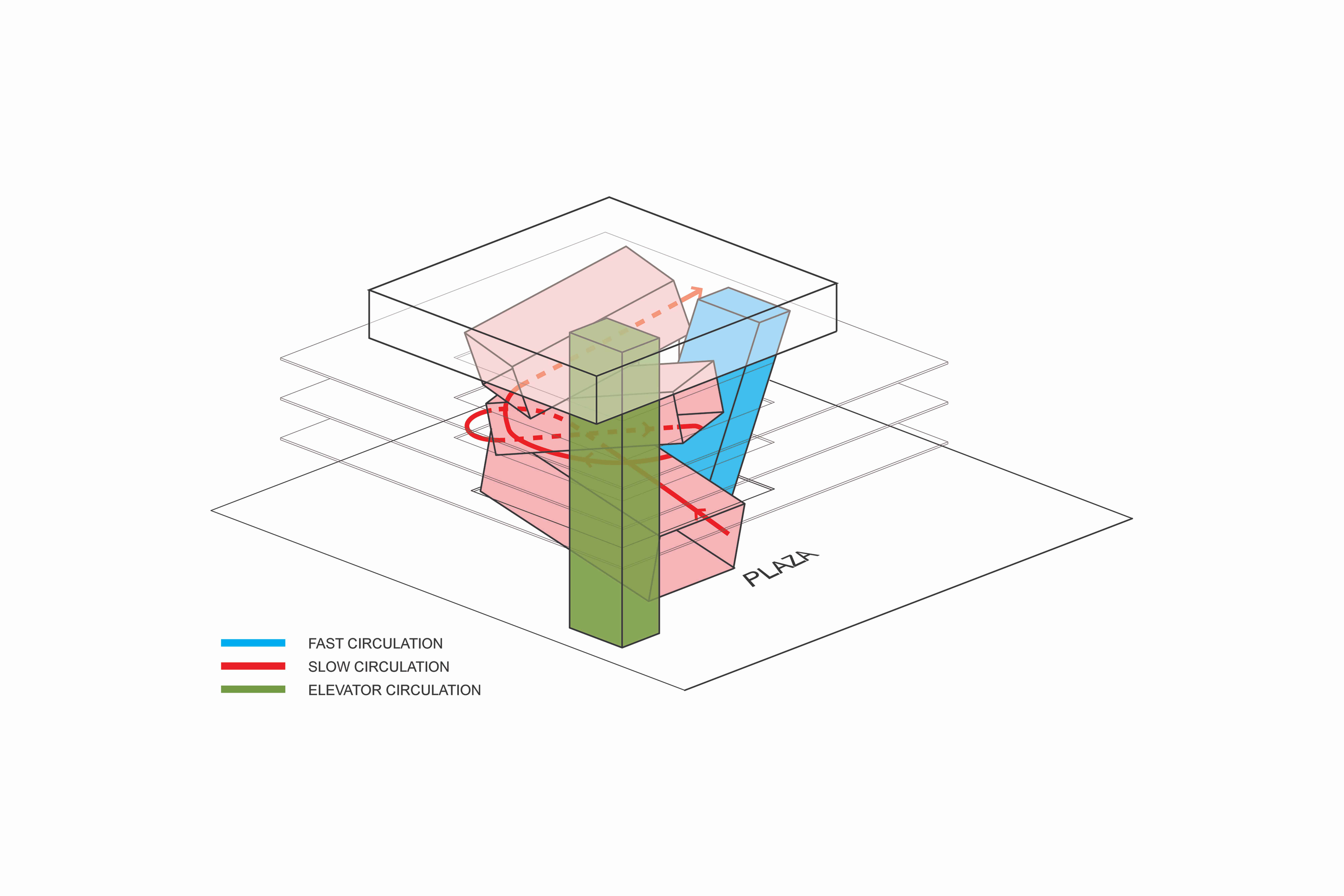

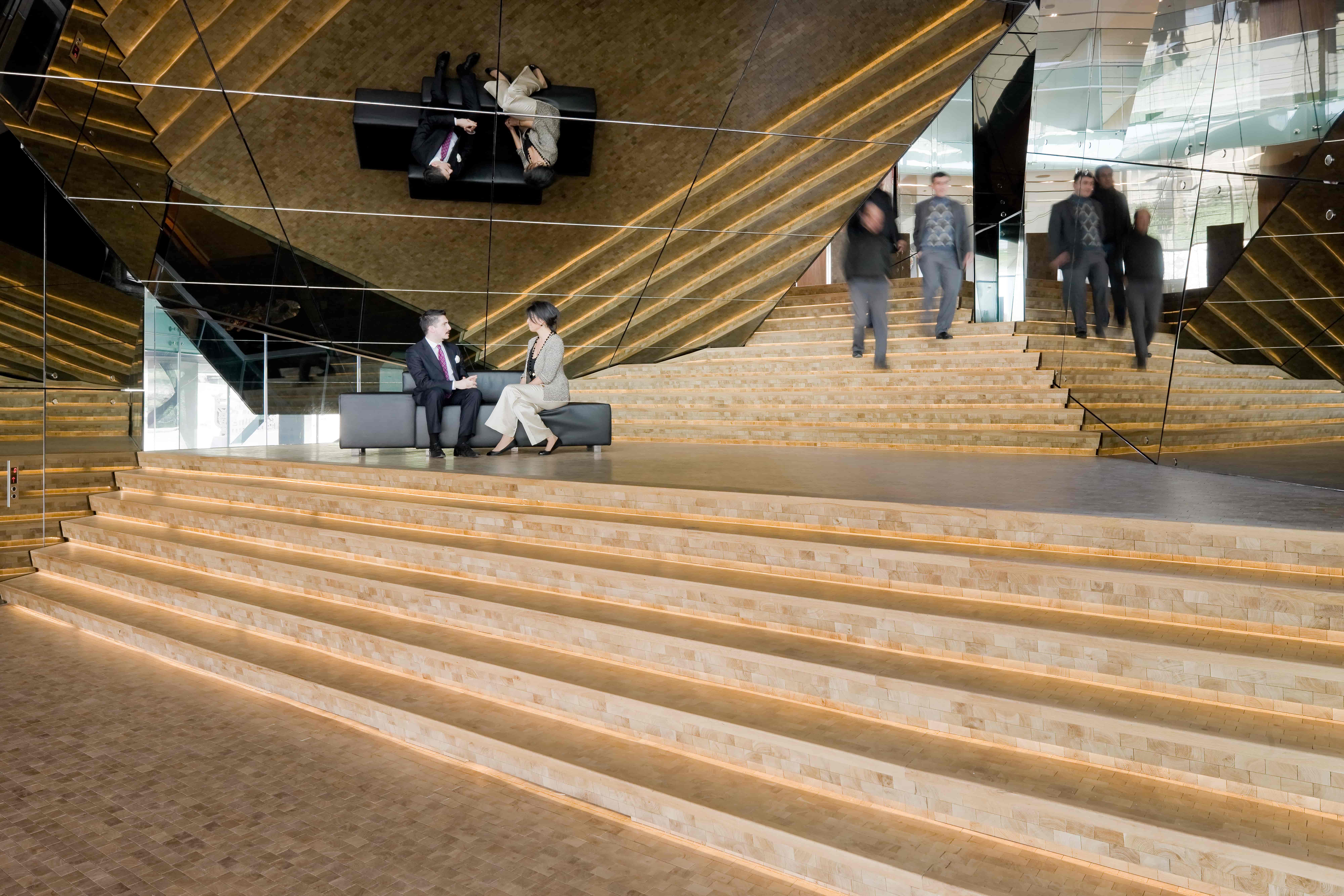

The slopes of the auditorium, showrooms, and meeting rooms create a circulation path that winds from bottom to top of the Showcase.

16-11

The slopes of the auditorium, showrooms, and meeting rooms create a circulation path that winds from bottom to top of the Showcase.

13-11

The slopes of the auditorium, showrooms, and meeting rooms create a circulation path that winds from bottom to top of the Showcase.

18-11

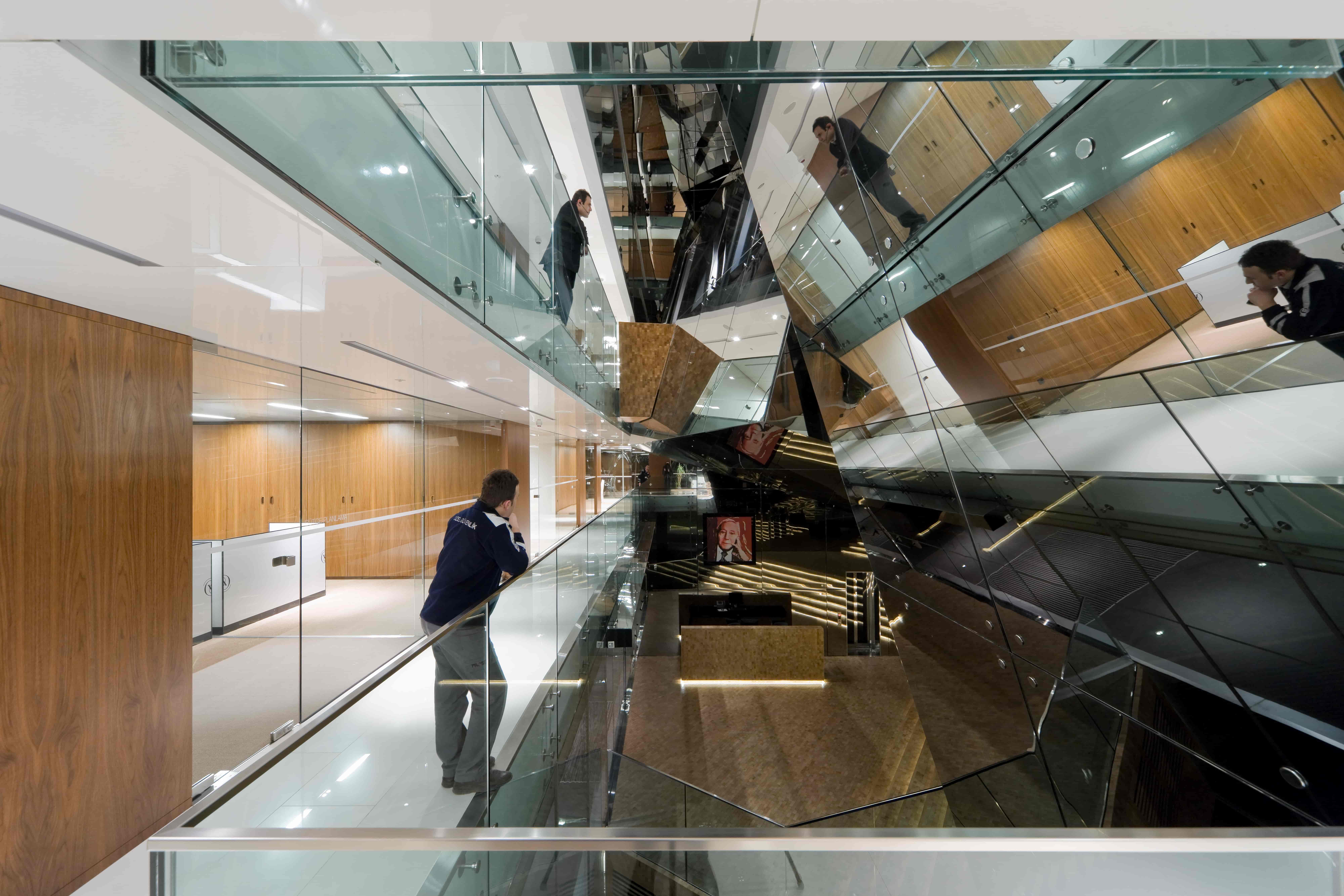

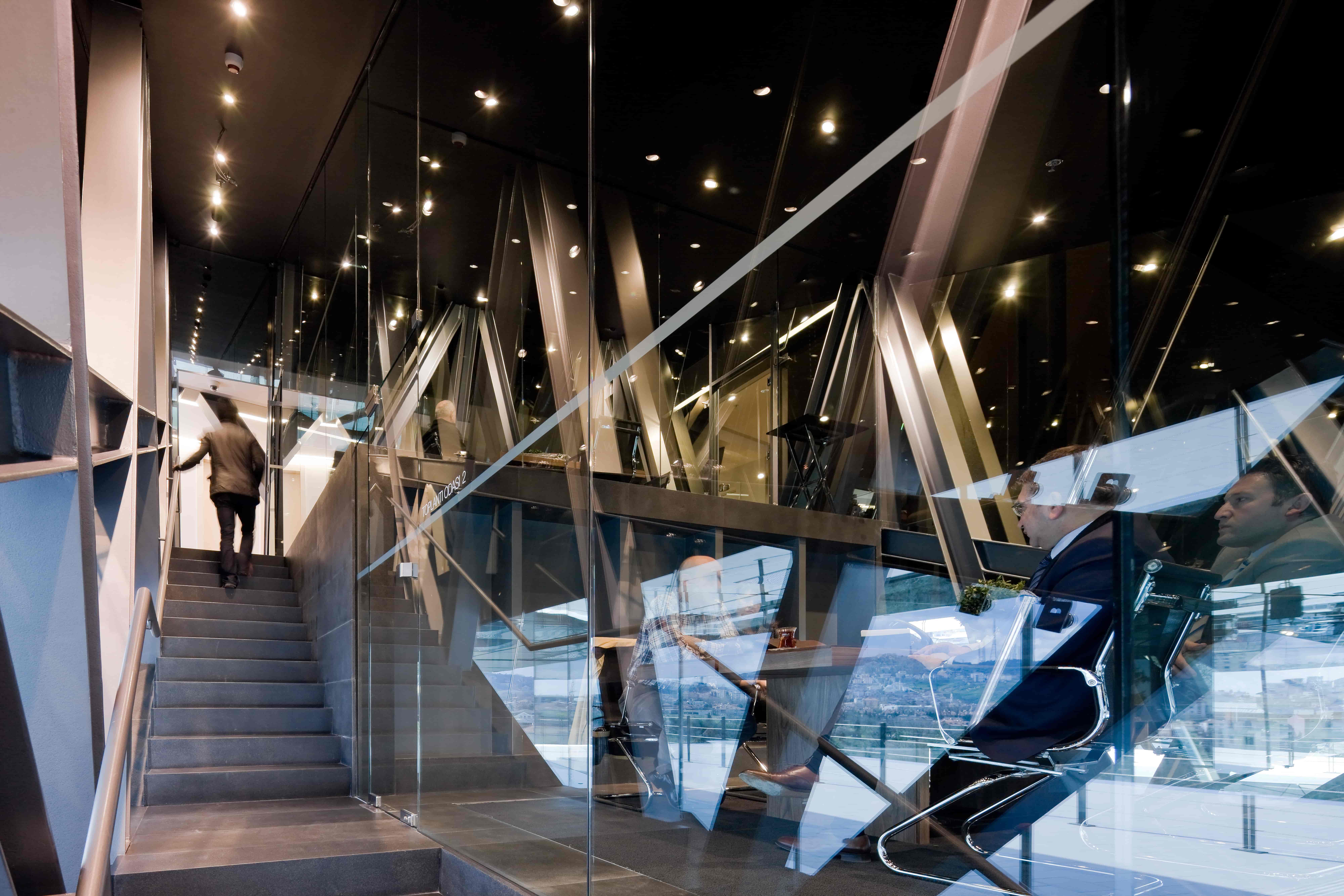

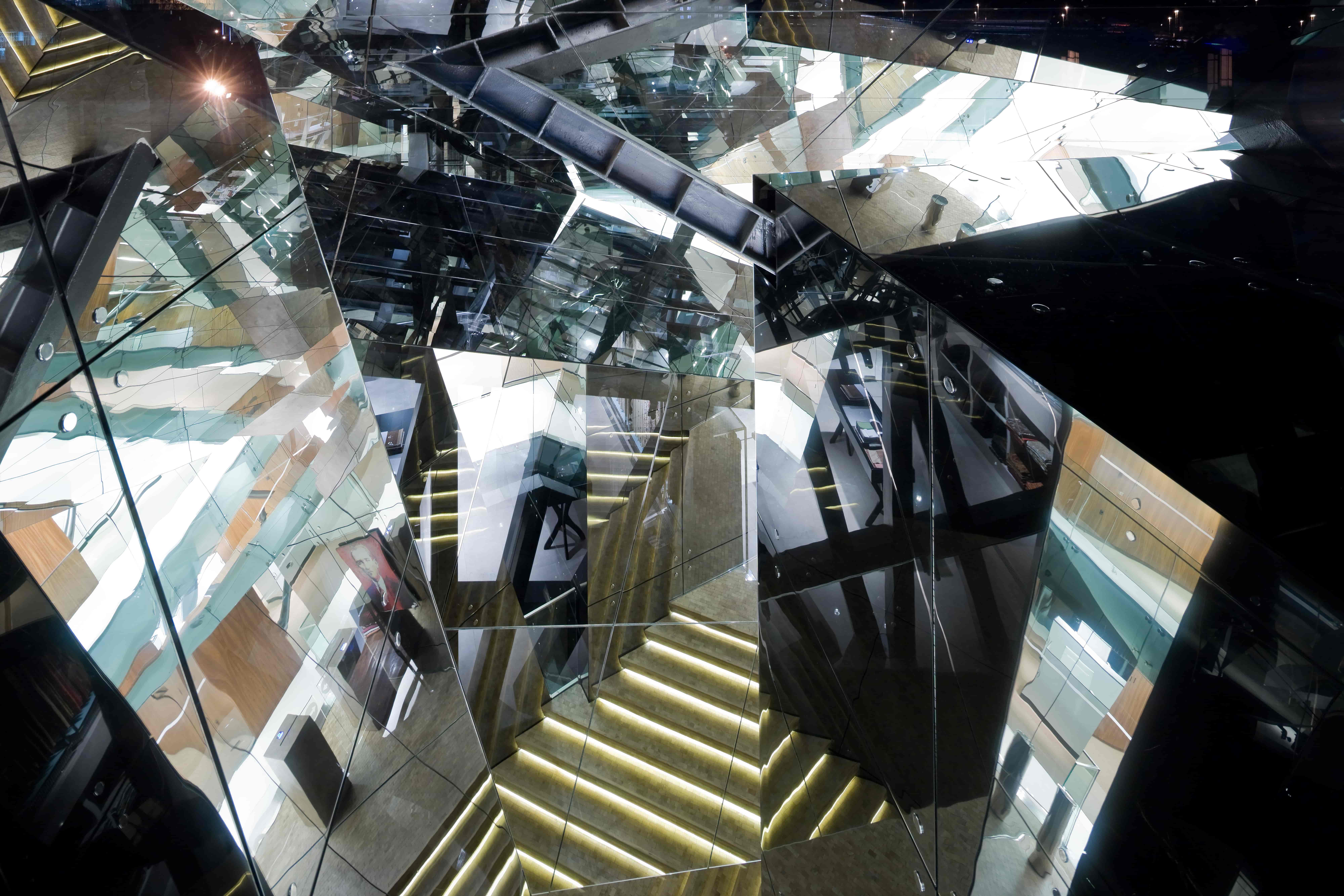

The Showcase is clad in mirror-glass, enlivening the building’s interior to kaleidoscopic effect.

17-9

The Showcase is clad in mirror-glass, enlivening the building’s interior to kaleidoscopic effect.

18_A

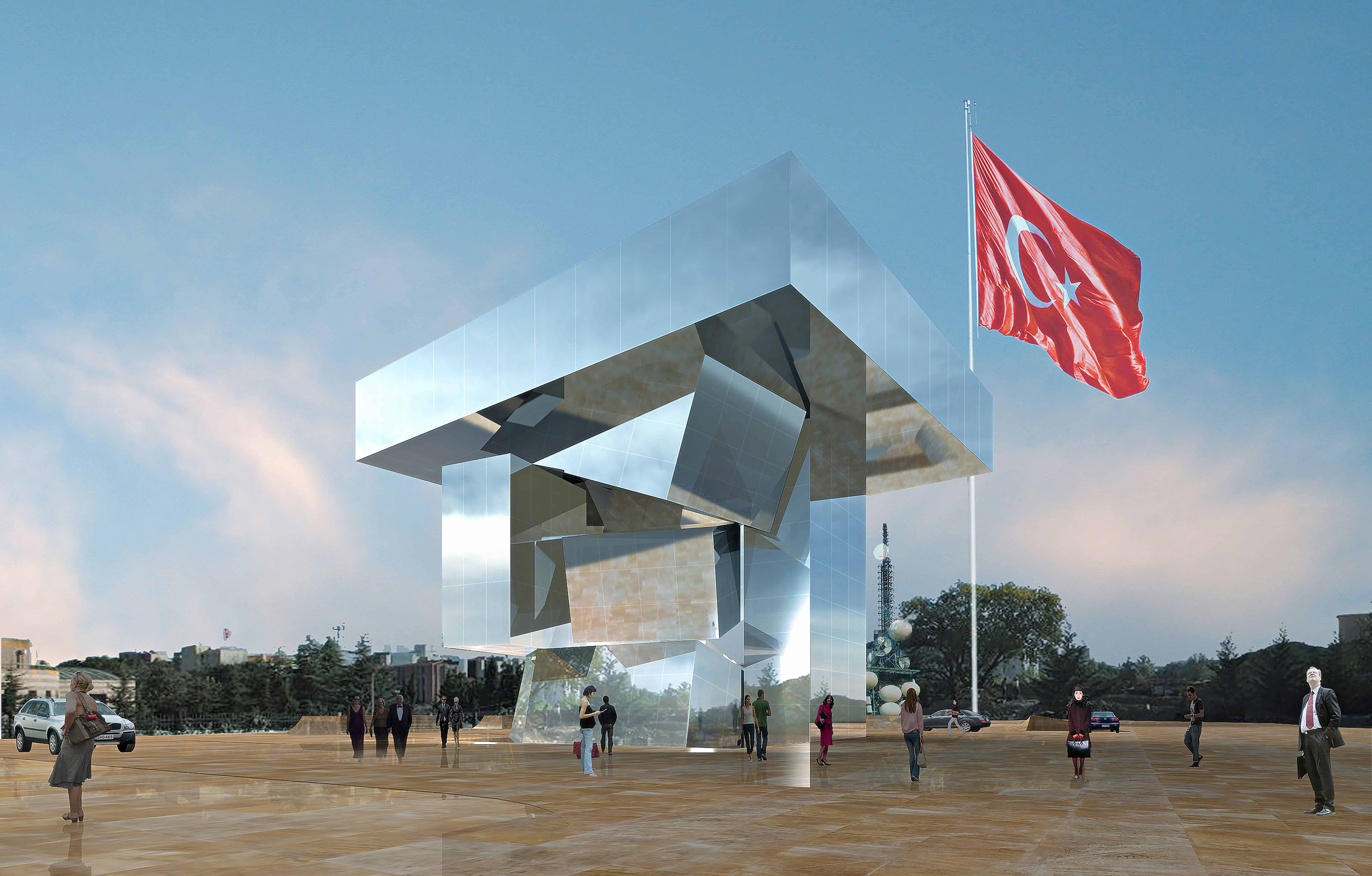

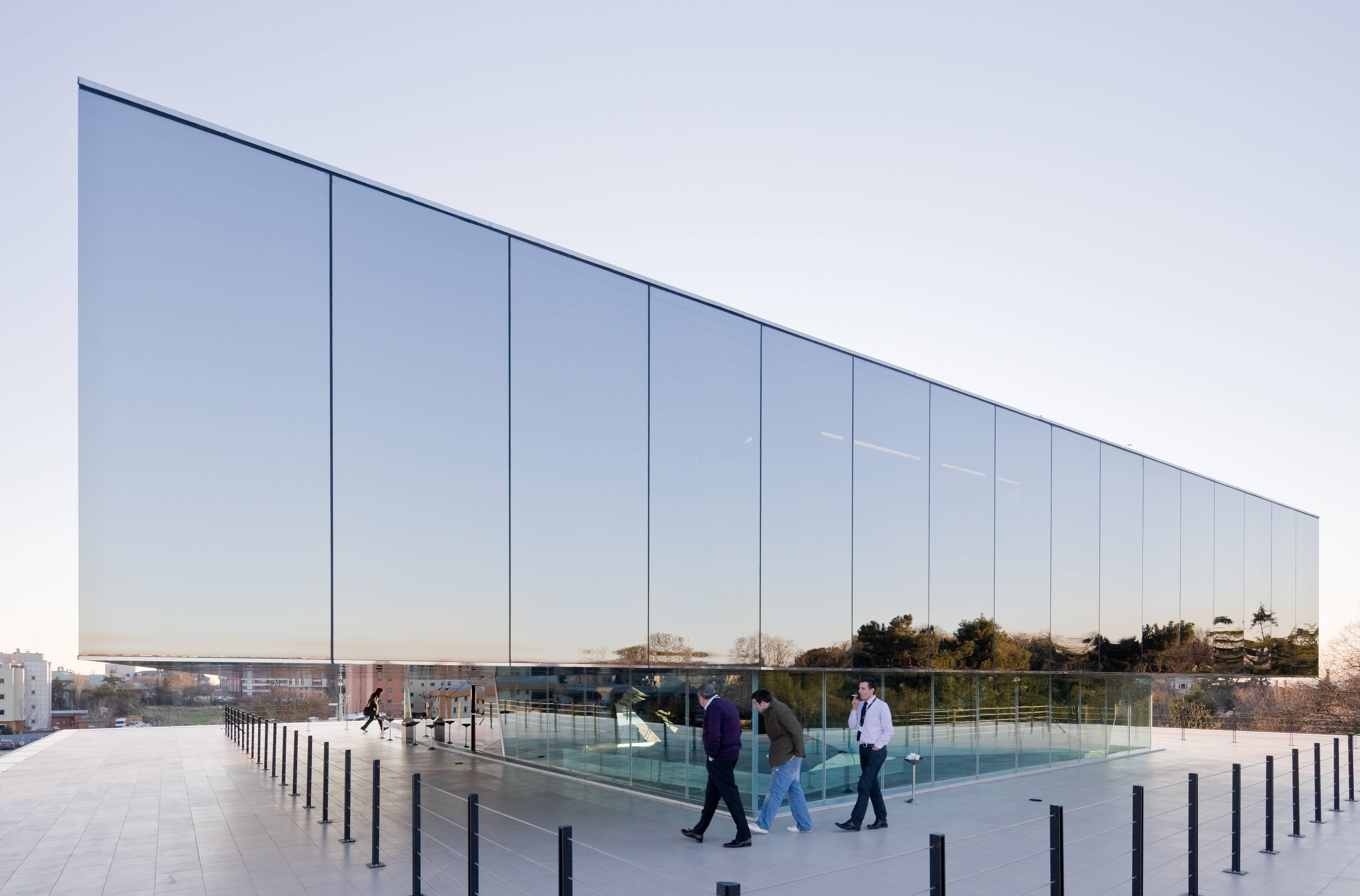

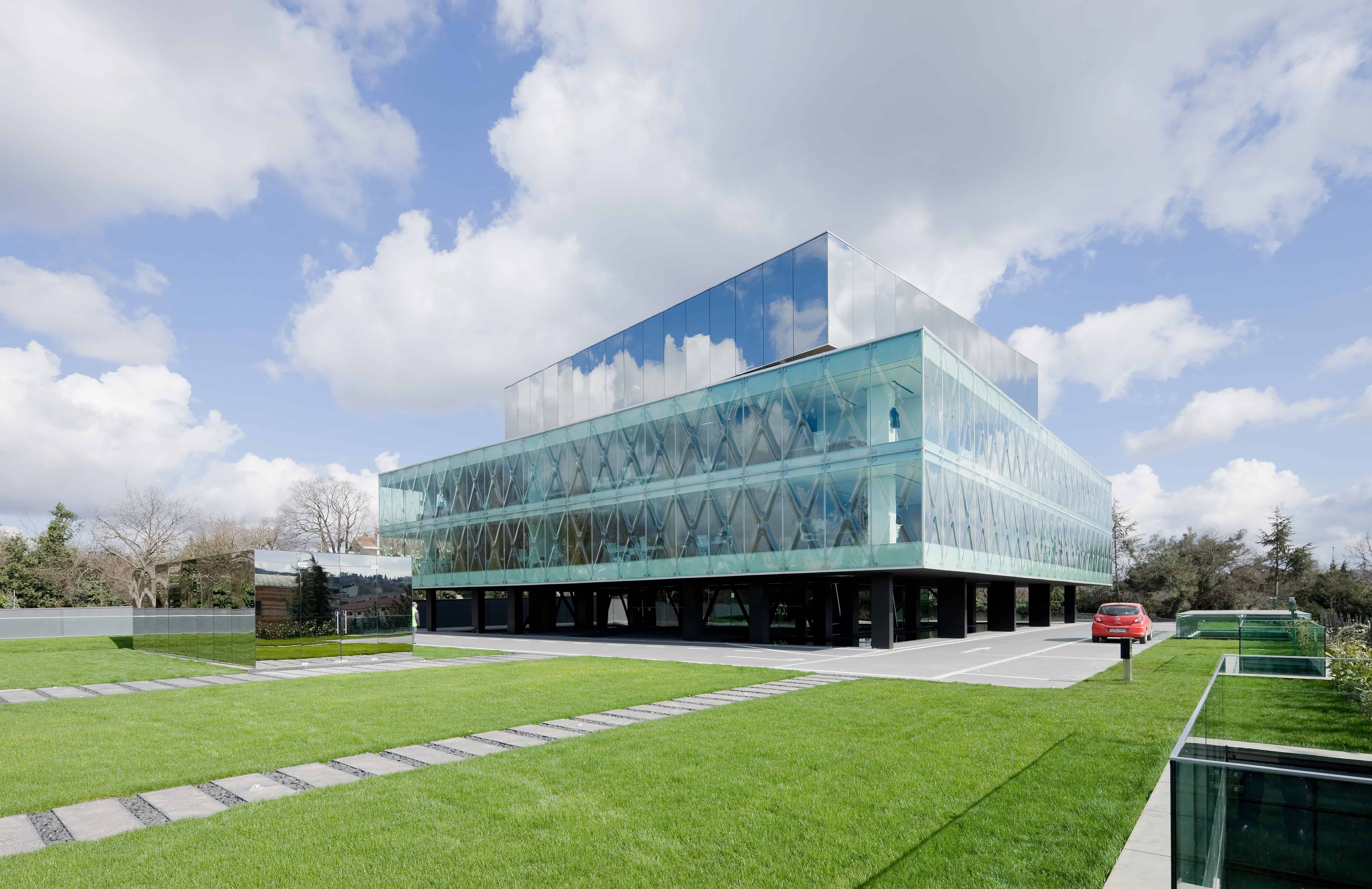

On the exterior, the mirror-glass provides a mirage-like cloak for the Showcase.

19-13

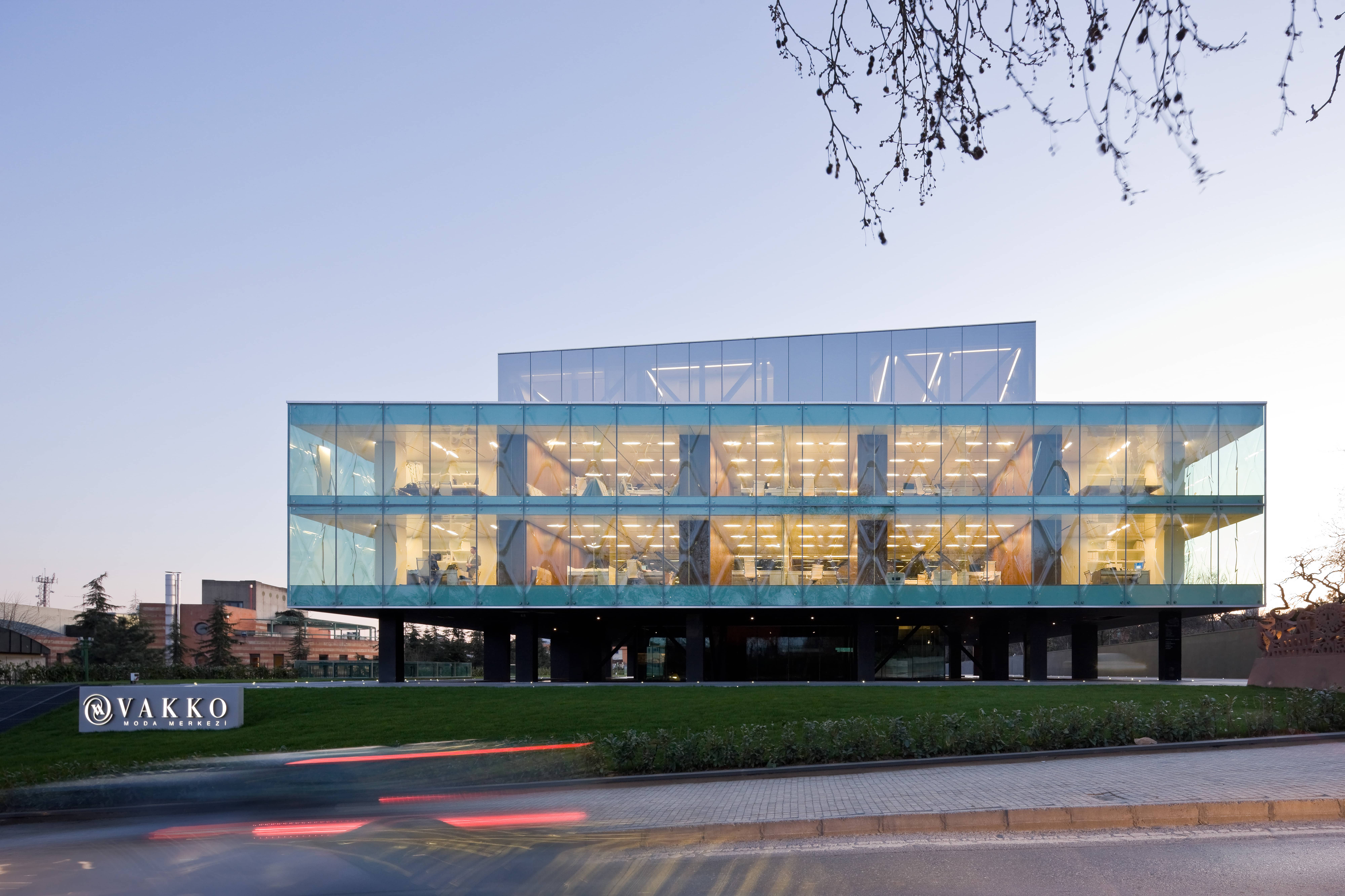

A beautiful and refined architectural image was critical to maintaining Vakko/Power’s public profile; yet the clumsy structure of the abandoned hotel was impossible to hide given the project’s compressed schedule. REX embraced this constraint by designing an exceptionally transparent and thin glass façade for the Ring.

20-9

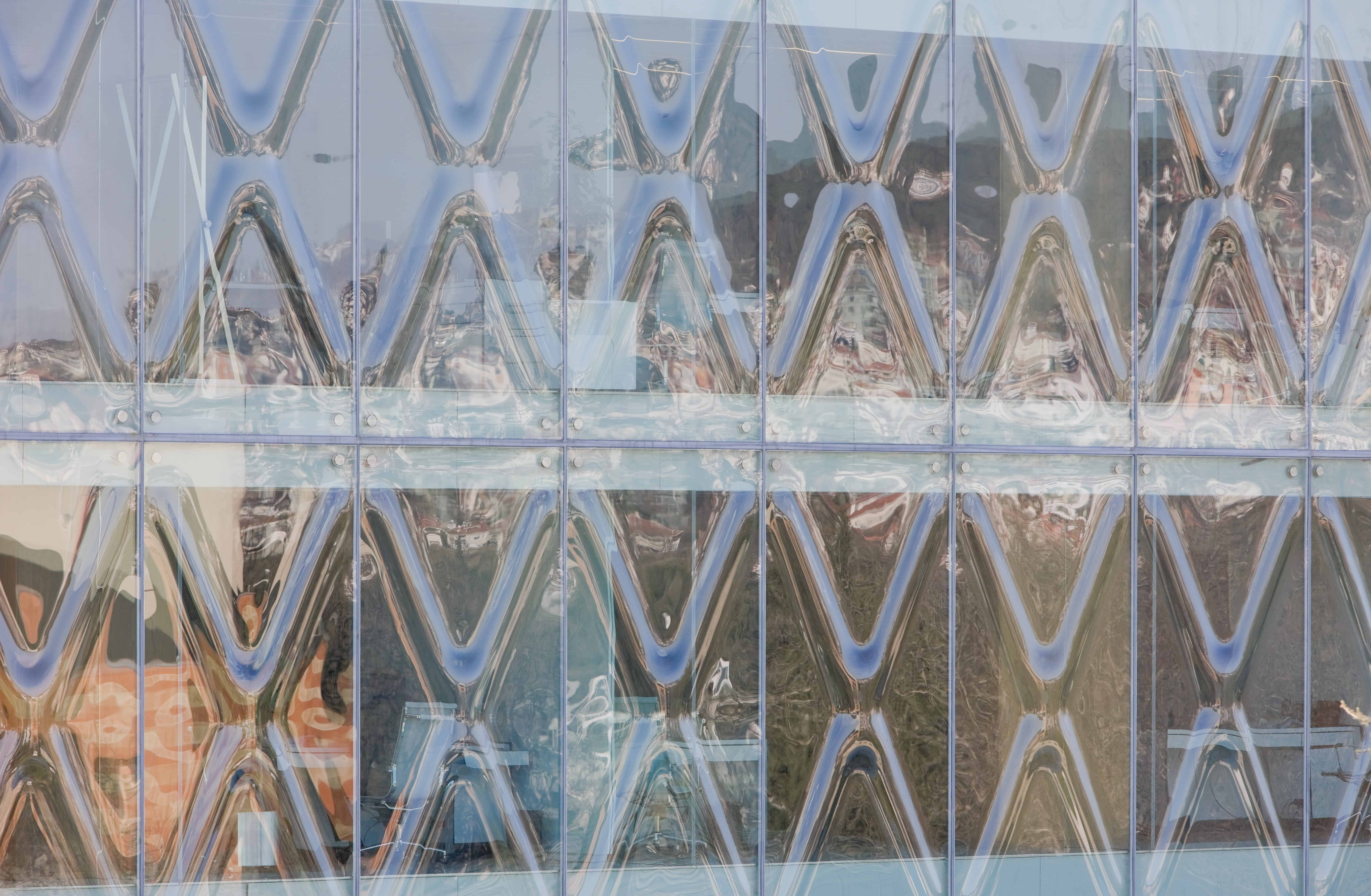

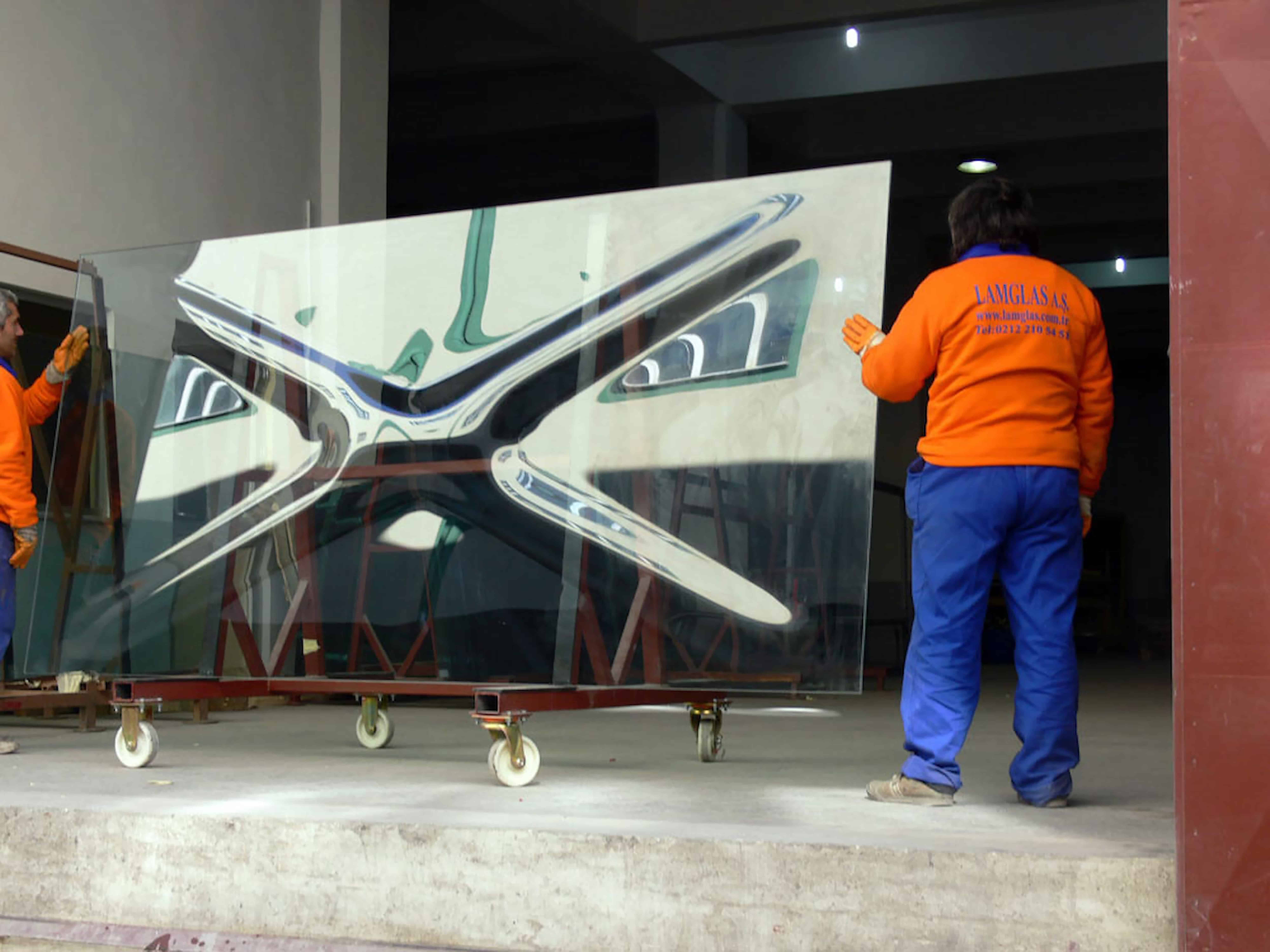

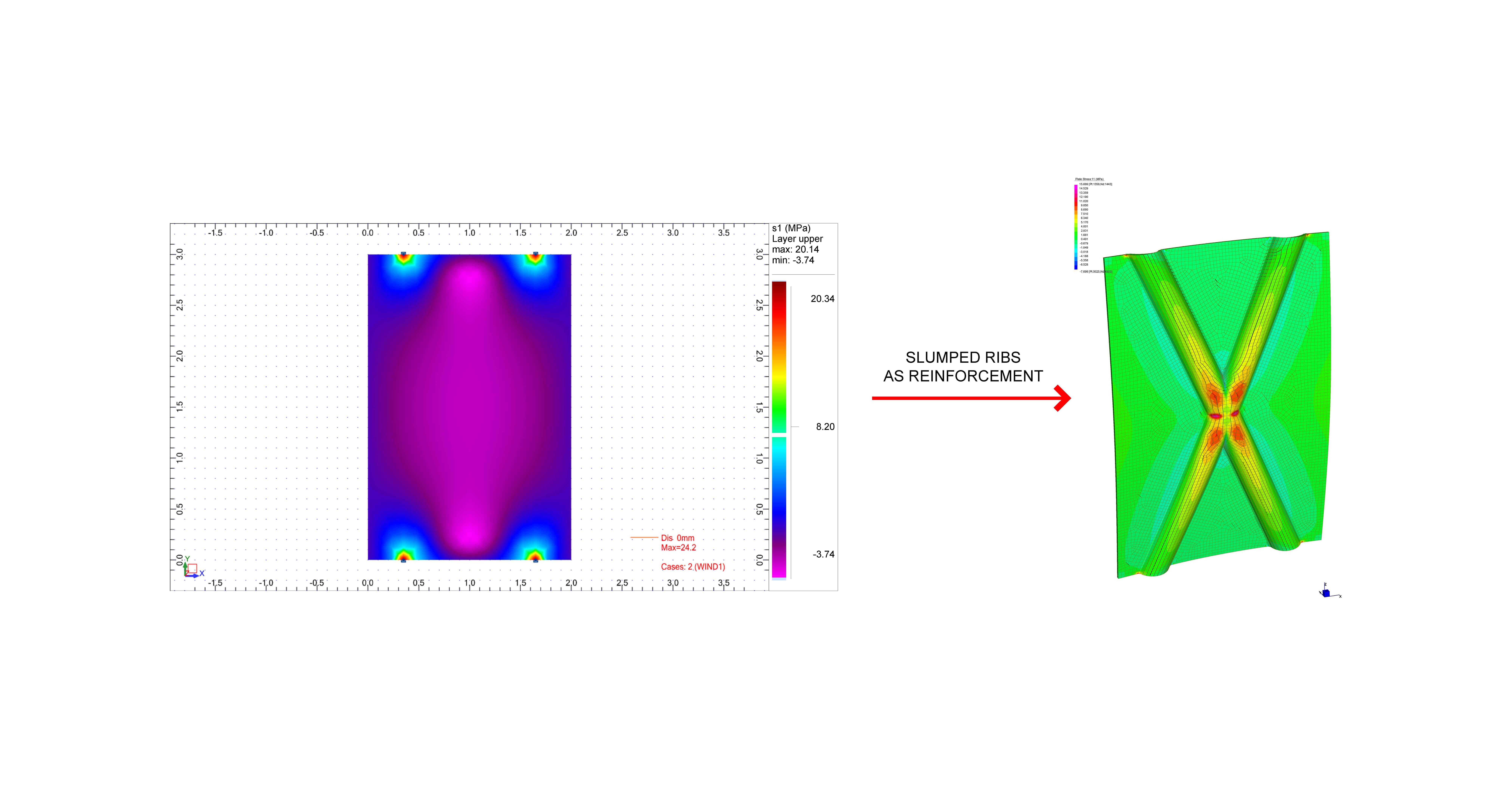

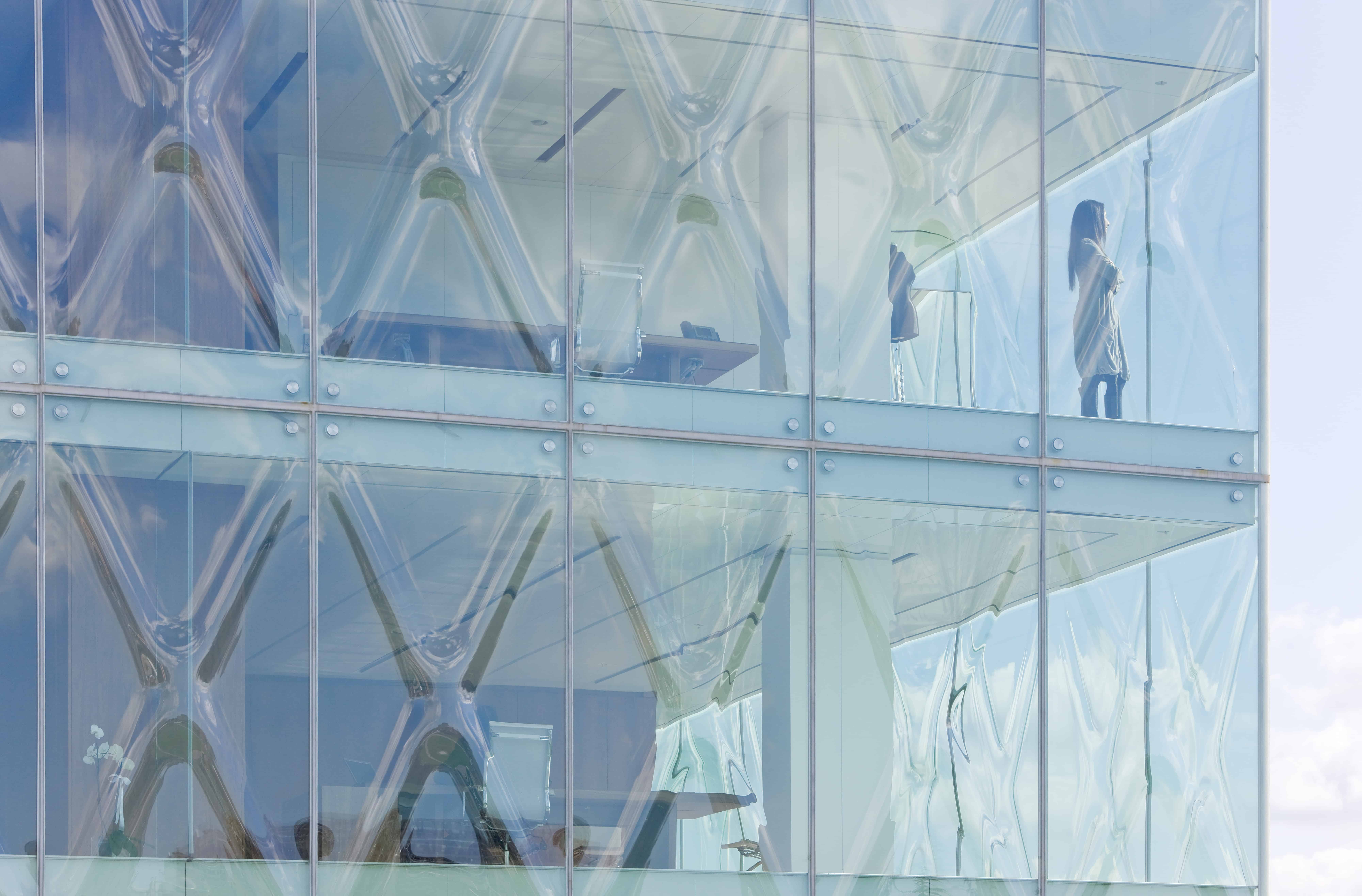

By slumping a structural X into each pane, the glass’s strength is increased, its need for perimeter mullions is eliminated, and its thickness is reduced.

22-11

By slumping a structural X into each pane, the glass’s strength is increased, its need for perimeter mullions is eliminated, and its thickness is reduced.

23-6

The result is an ultra-thin sheath of glass that wraps the existing skeleton. This ethereal “Saran Wrap” subtly reveals the pre-existing concrete skeleton and suggests the Showcase behind.

25-8

Power Media Center

21-8

Vakko library

27-4

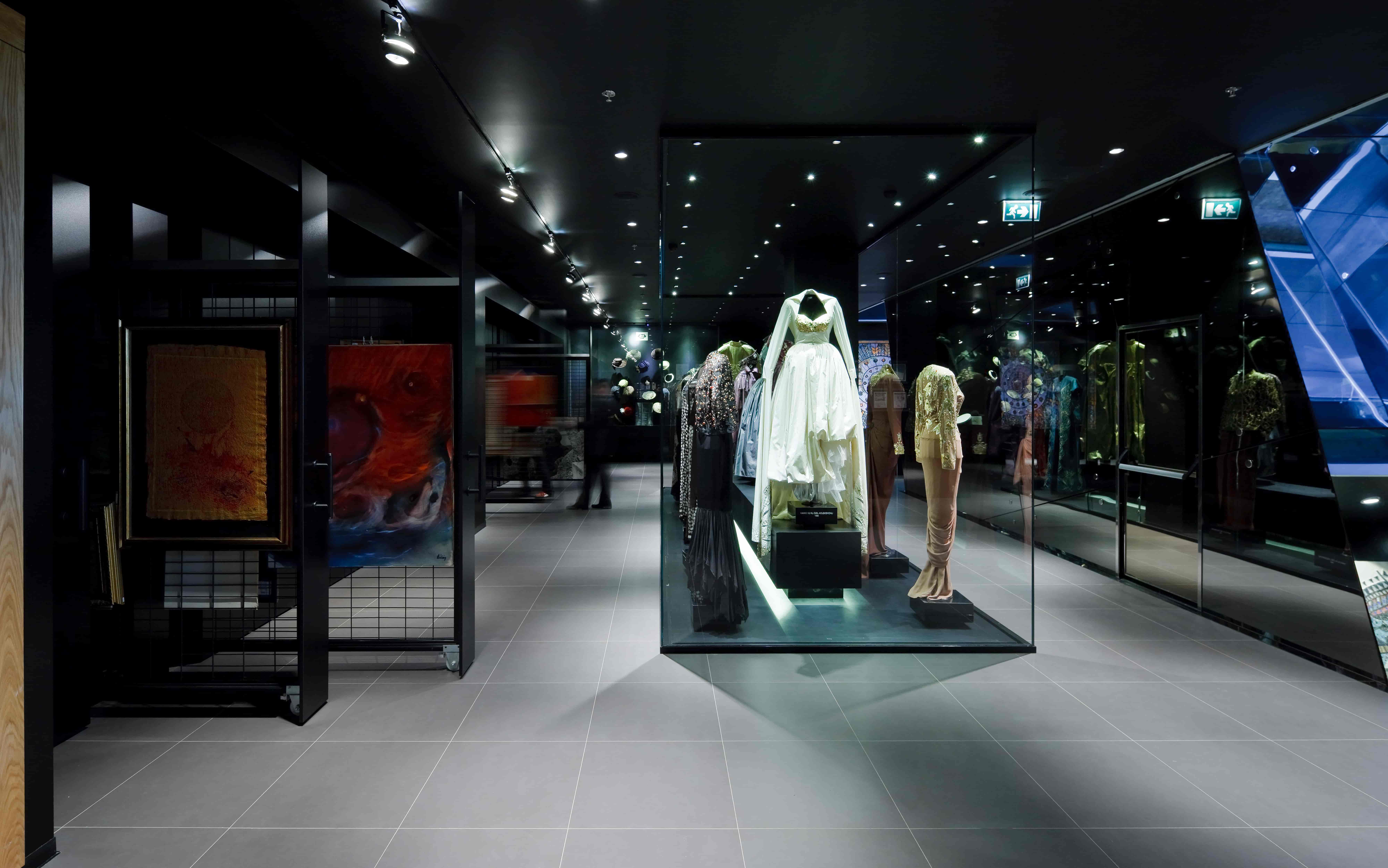

Vakko museum

24-5

Auditorium box

28-3

Entry

29-3

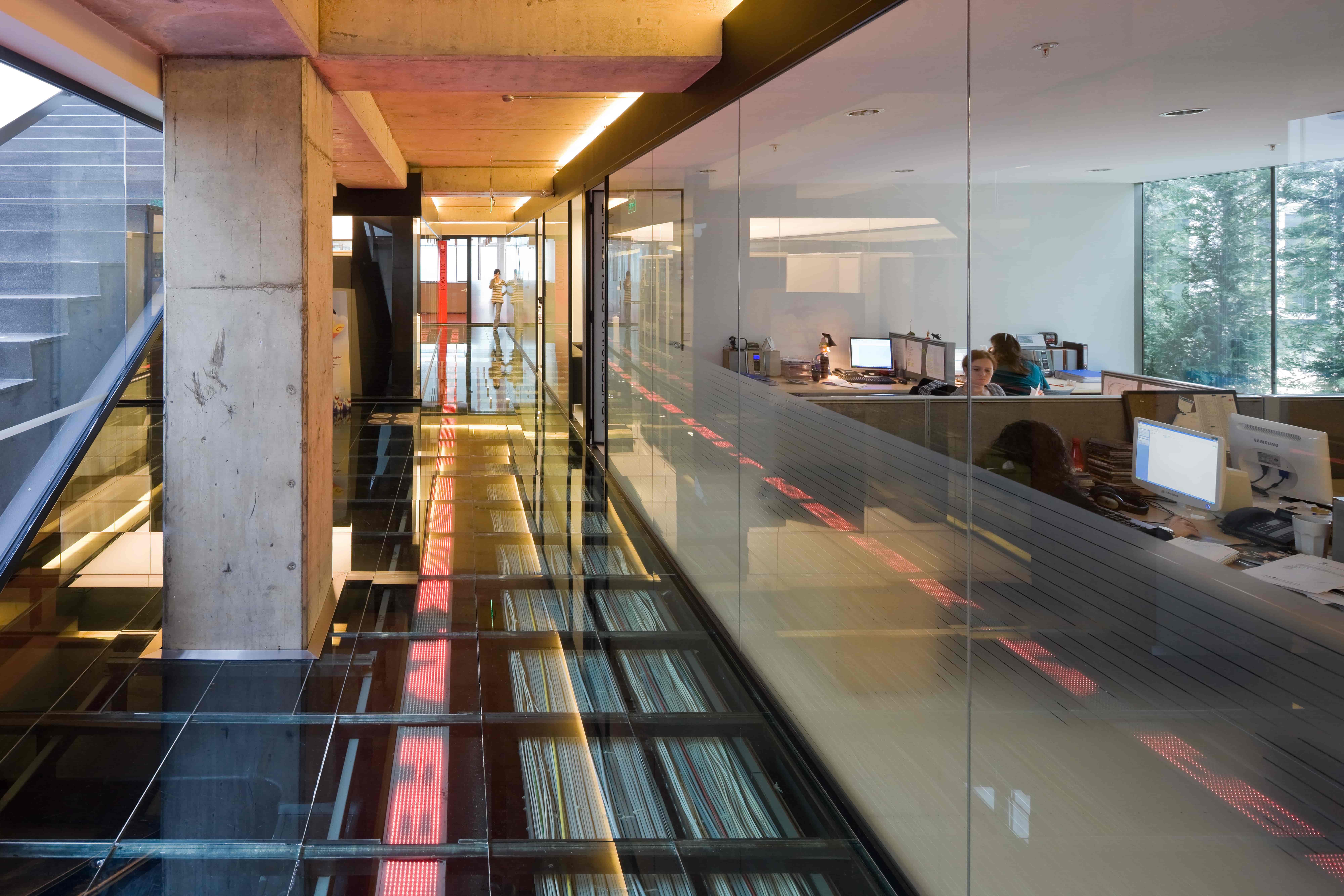

Ring offices

31

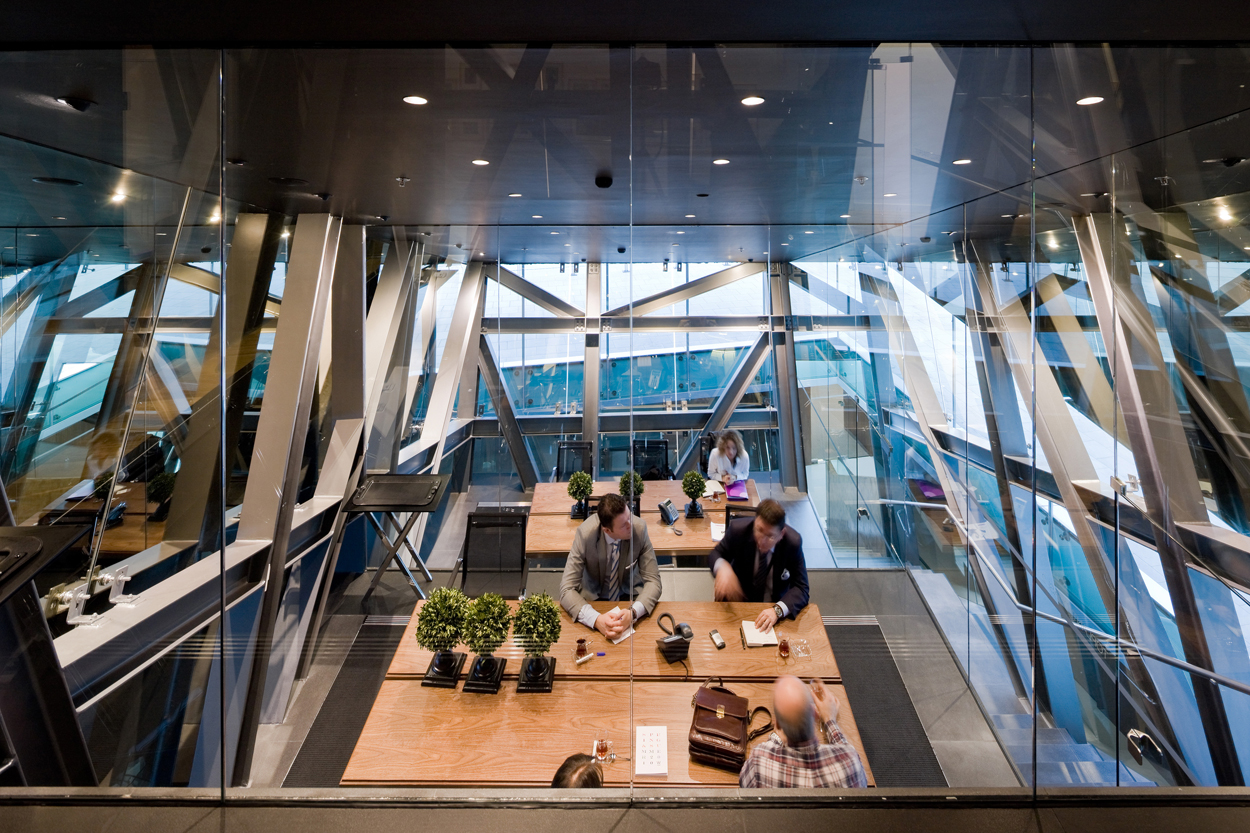

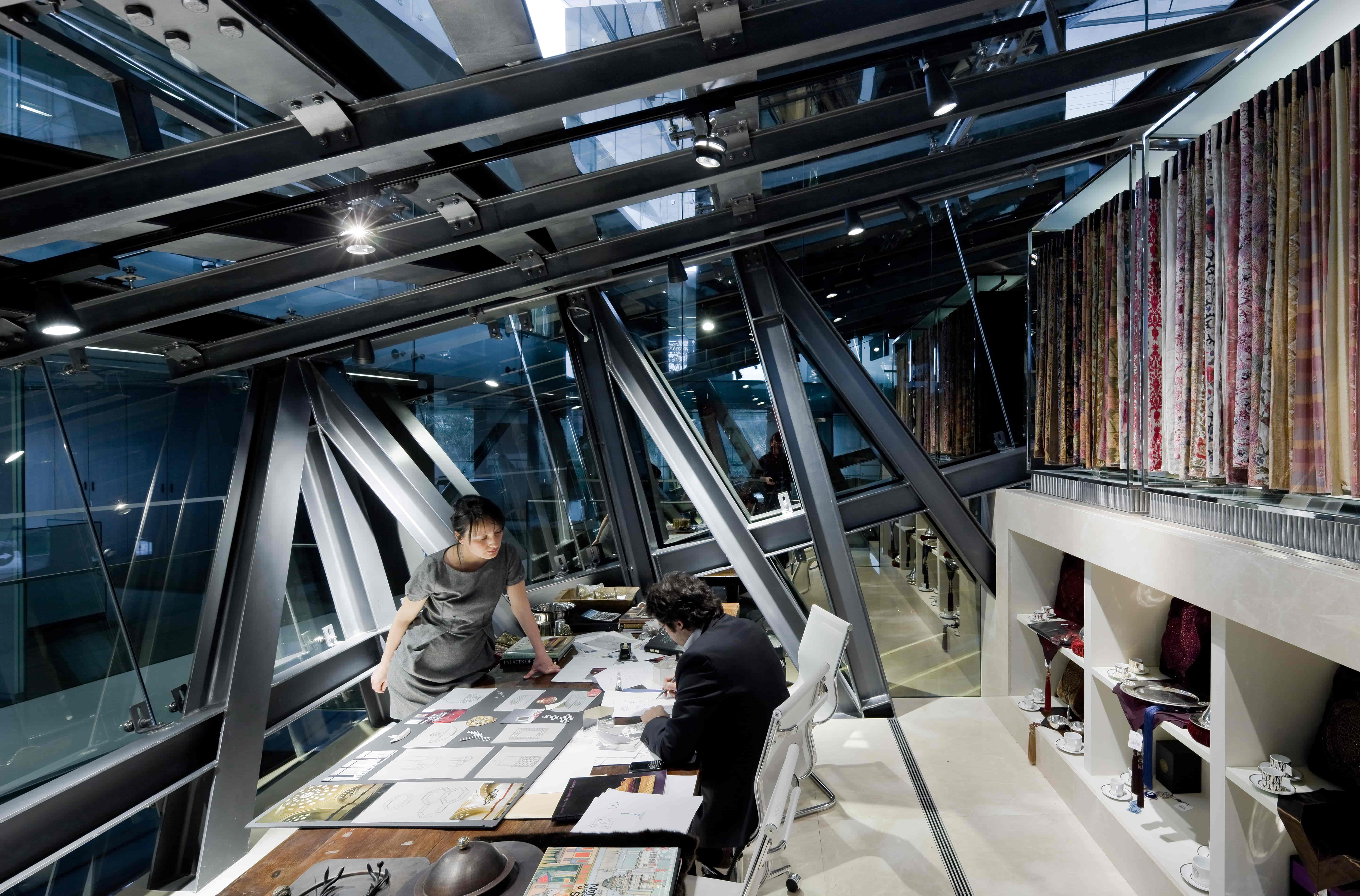

Showroom box

30-1

Meeting Room box

33

Roof terrace

34-1

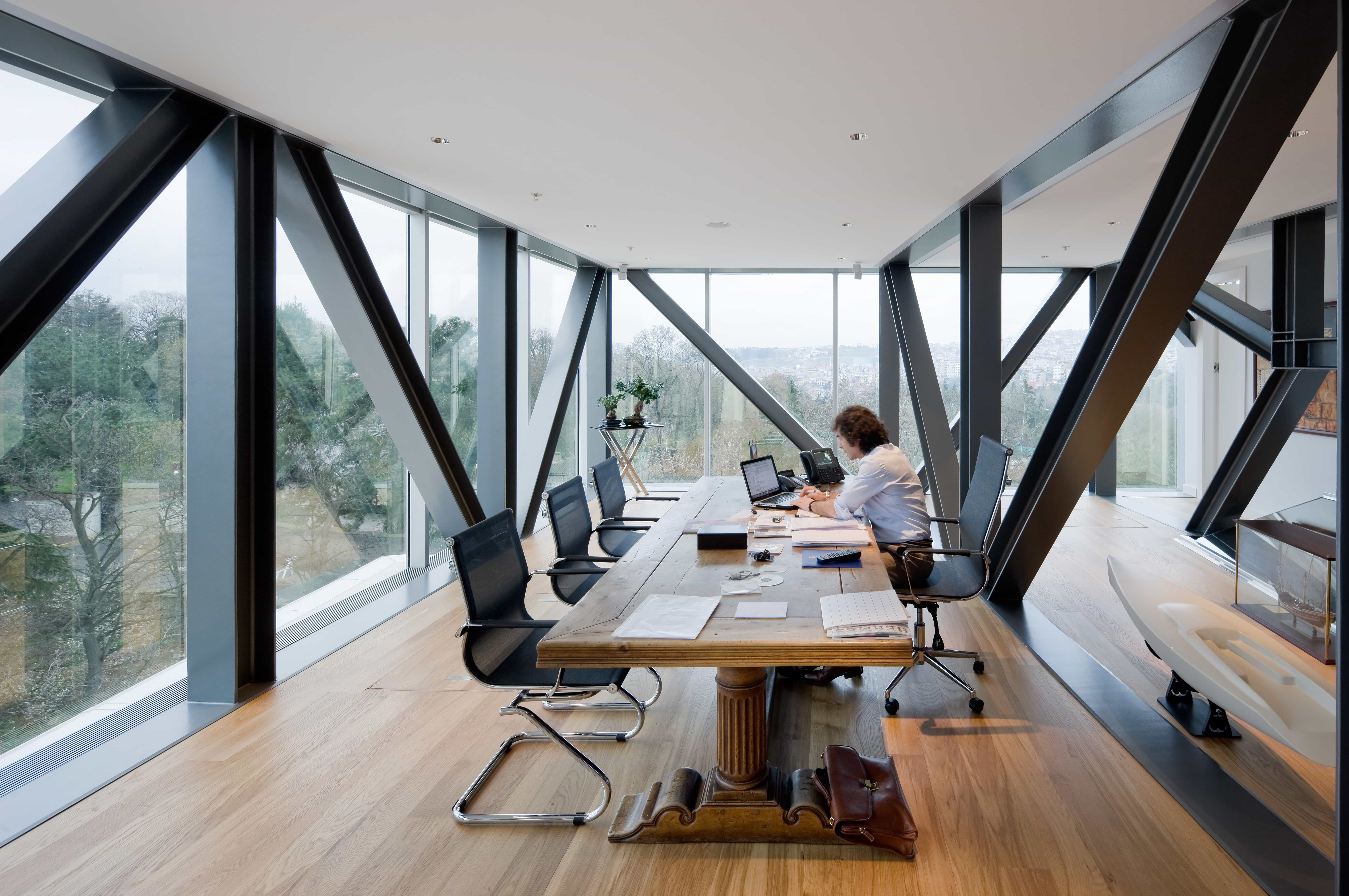

Executive Offices box

32-3

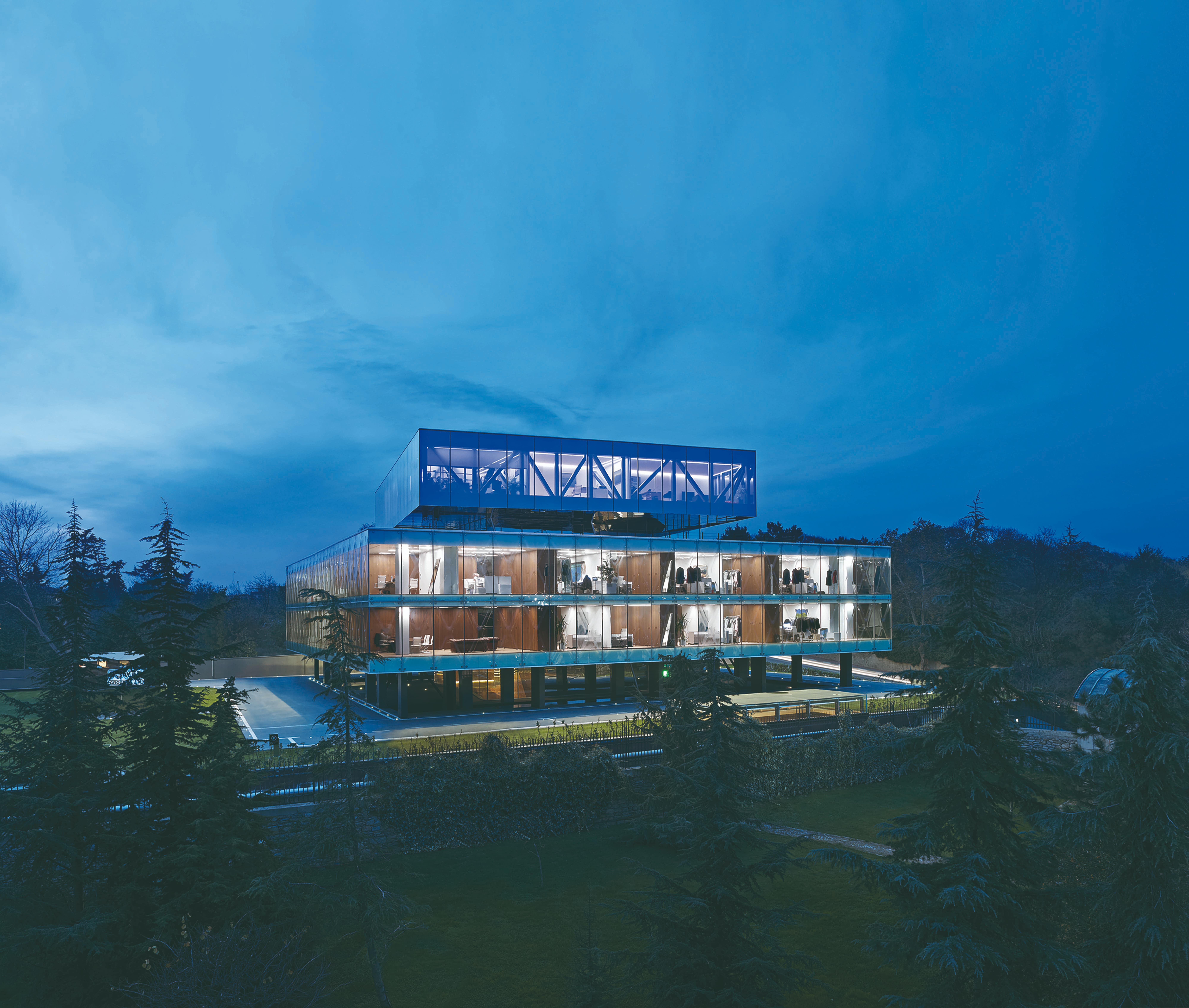

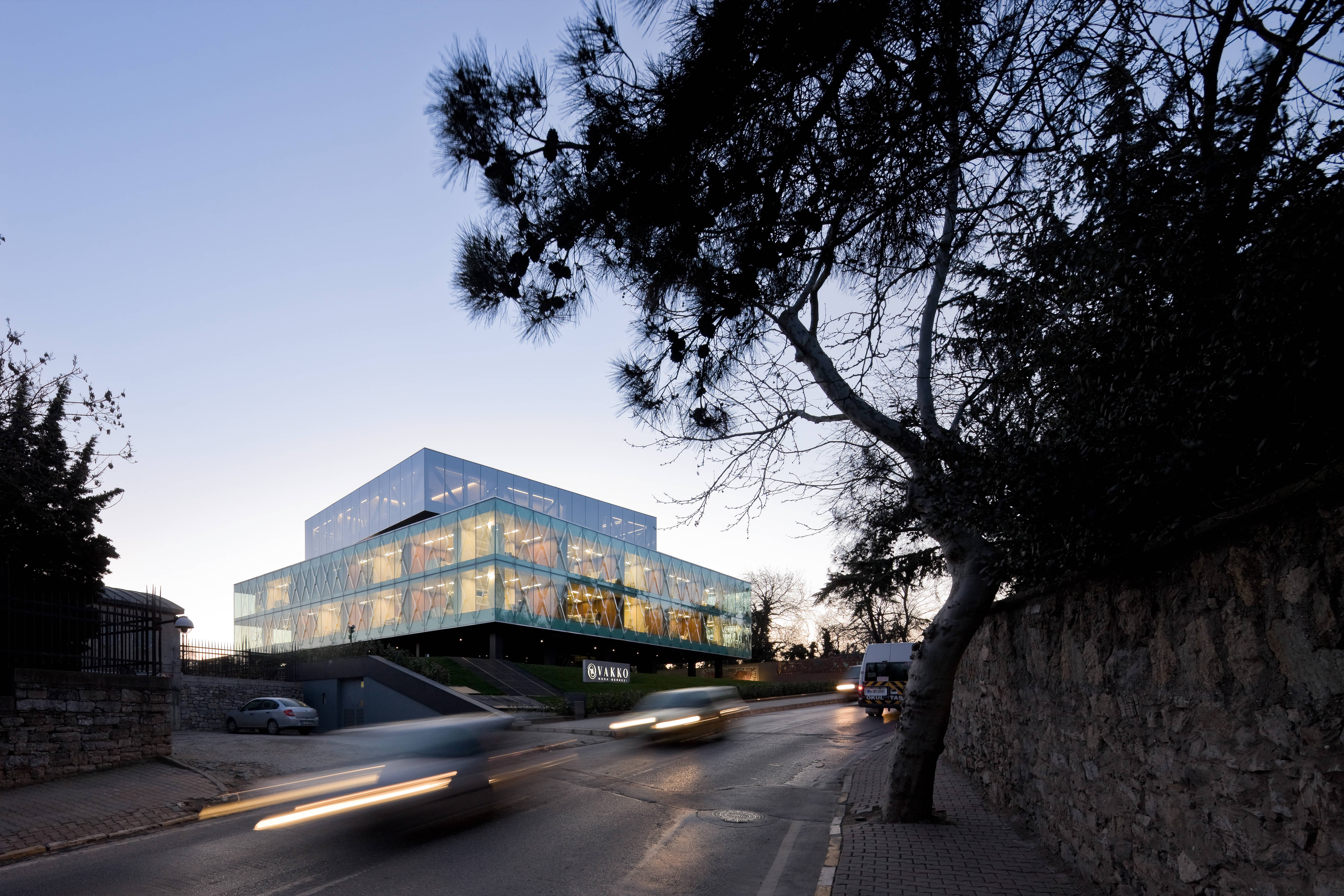

Hyper transparency opens the headquarters to the city.

35-2

Image Credits: 1, 14, 15, 16, 17, 18, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33: Iwan Baan; 2, 10: Luxigon
